O-Z/Gedney O-Z/Gedney 0ZGLR37
O-Z/Gedney 0ZGLR37
Kirby Risk #: 1786316
UPC: 00783126388022, 783126388022, 78312638802
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

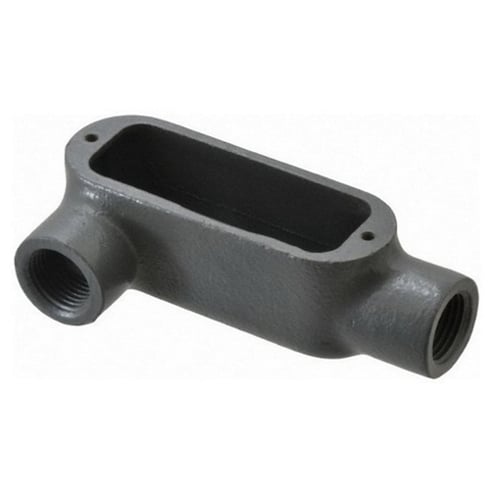

OZ-Gedney Type LR Conduit Body, 1 IN Hub, Form: 7, Length: 6 IN, 2-3/4 IN Width, 1-7/8 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (4 AWG) Conductors, 10.5 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No. 18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC section 501-4(B), NEMA: FB-1, FB-2.10, For Rigid Conduit And IMC
Modified Industry Description
1 IN FORM7 LR COND BODY
Specifications
| Application |
For Rigid Conduit And IMC
|
|---|---|
| Color |
Gray
|
| Connection |
Tapered FNPT
|
| Country of Origin |
MX
|
| Dimensions |
6 in L x 2-3/4 in W x 1-7/8 in H
|
| Enclosure |
NEMA FB-1/FB-2.10
|
| Finish |
Zinc Electroplated/Aluminum Enamel
|
| Length1 |
8.5000
|
| Material |
Grayloy Iron
|
| Mounting_Type |
Surface
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No. 18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC section 501-4(B), NEMA: FB-1, FB-2.10
|
| Type |
Type LR
|
