Hoffman Hoffman A62H60DLP


Description

Industry Description

Two-Door with Floor Stands, Type 4, 62.06x60.06x12.06, Gray, Steel

Modified Industry Description

TYPE 4 ENCL. 62.06X60.06X12.0

AD Description

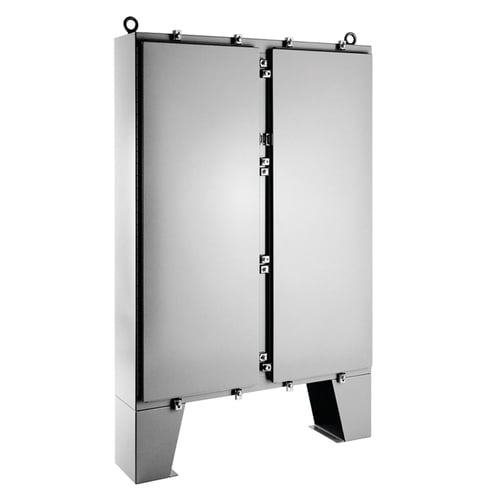

Hoffman A62H60DLP A4L 2-Door Large Enclosure With Floor Stand, 62.06 in L x 60.06 in W x 12.06 in D, NEMA 4/IP66 NEMA Rating, Steel

Vendor Description

The Type 4 rating and polyester powder coating make these enclosures ideal for outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Featuring a continuous hinge with clamps, the enclosures are supported by floor stands that provide additional height and access for cleaning under the enclosure. Equipment can be mounted on either panels or racks.

Specifications

Application
The Type 4 rating and polyester powder coating make these enclosures ideal for outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Featuring a continuous
Color
Gray
Country of Origin
MX
Finish
Polyester Powder Coated
Length1
62.06
Material
Steel
Mounting_Type
Floor
NEMA_Rating
NEMA 4/IP66
Series
A4L
Size
62.06X60.06X12.06 in
Special Features

  • 12 ga steel
  • 12 in floor stands are welded to enclosure
  • Body stiffeners for added strength
  • Bonding provision on door
  • Collar studs provided for mounting optional panels
  • Data pocket is high impact thermoplastic
  • Grounding stud on body
  • Hasp and staple provided for padlocking
  • Heavy duty lifting eyes anchored into reinforced top
  • Heavy gauge continuous hinge with stainless steel hinge pin
  • Oil-resistant door gasket
  • Provision for mounting fluorescent light
  • Removable centerpost permits easy panel installation
  • Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Stainless steel door clamps on three sides of each door assure watertight seal
Standard
UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997, NEMA/EEMAC Type 3, Type 4, 12, 13, CSA, File No. LR42186, Type 4, 12, IEC 60529, IP66
Sub_Brand
Hoffman
Type
2-Door Large
