Hubbell Hubbell M4100B12R
Hubbell M4100B12R
Kirby Risk #: 1784478
UPC: 00783585410012, 78358541001, 783585410012
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Marine Grade, Male, Flanged Inlet, 100A 125/250V, 3-Pole 4-WireGrounding, Terminal Screws, Yellow
Modified Industry Description
100A 125/250V 3 POLE 4 WIRE MALE FLANGED INLET
AD Description

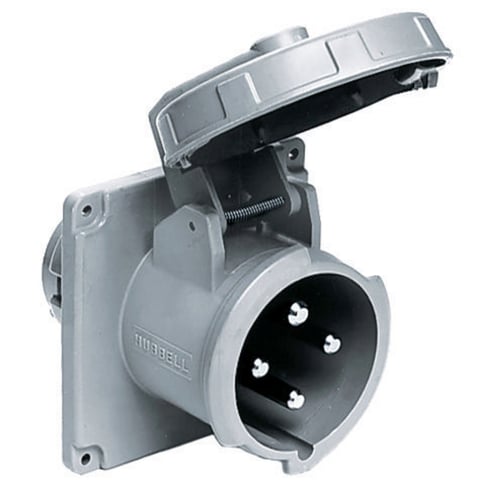

Wiring Device-Kellems M4100B12R Flanged Male Hull Mount Single Standard Watertight Pin and Sleeve Inlet, 250/125 VAC, 100 A, 3 Poles, 4 Wires, Gray
Specifications
| Amperage Rating |
100
|
|---|---|
| Application |
Marine Wiring Devices
|
| Brand Name |
Hubbell
|
| Color |
Gray
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#3AWG to #1/0AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Insulation |
Insulated Body
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact
|
| Type |
Hull Mount Single Inlet
|
| Voltage Rating |
125/250
|
| Wattage |
25k
|
