Siemens Siemens HCL65678


Description

Industry Description

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL A. Rating 400-1200A No. Of Poles 1P F. Rating 60Hz. 2-3 point mounting holes. O. Cycles 6050 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR

Modified Industry Description

400-1200A 1P COMP LUG MOUNT KIT

AD Description

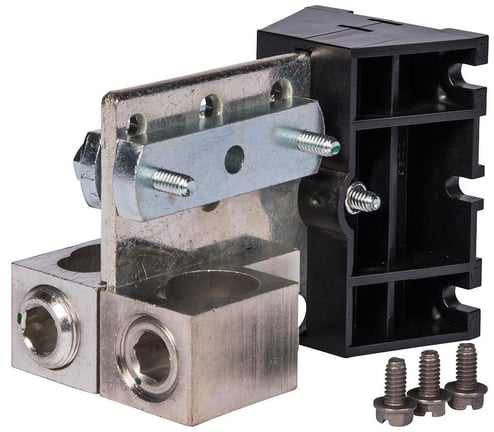

Siemens HCL65678 1-Pole Compression Lug Mounting Kit, 1/0 AWG to 600 kcmil Wire

Specifications

Amperage Rating
400-1200A
Brand Name
Siemens
Country of Origin
MX
Environmental_Conditions
Indoor
Frequency_Rating
60
Insulation
None
Mounting
2 OR 3 POINT MOUNTING HOLES
Number_Of_Poles
1
Operating_Cycles
6050
Operating_Temperature
(-20F-120F) AMBIENT TEMPERATURE
Special Features

  • (1) 1/0 AWG to 600 kcmil aluminum/copper, (2) 1/0 AWG to 500 kcmil aluminum/copper wire with wire bending space per NEC requirements, (2) 1/0 AWG to 600 kcmil aluminum/copper lug wire at 400 A
  • (4) 3/0 AWG to 750 kcmil aluminum/copper line load, (4) 1/0 AWG to 750 kcmil aluminum/copper neutral wire range with wire bending space per NEC requirements, (4) 1/0 AWG to 750 kcmil aluminum/copper line load, (4) 1/0 AWG to 750 kcmil aluminum/copper neutral lug wire at 1200 A
Standard
UL
Sub_Brand
Siemens
Type
ENCLOSED/SAFETY SWITCH
