Hubbell Hubbell HBL460C12W
Hubbell HBL460C12W
Kirby Risk #: 1778158
UPC: 783585404783, 78358540478, 00783585404783
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 60A 125/250V, 3-Pole4-Wire Grounding, Terminal Screws, Orange, Watertight
Modified Industry Description
60A 125/250V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY
AD Description

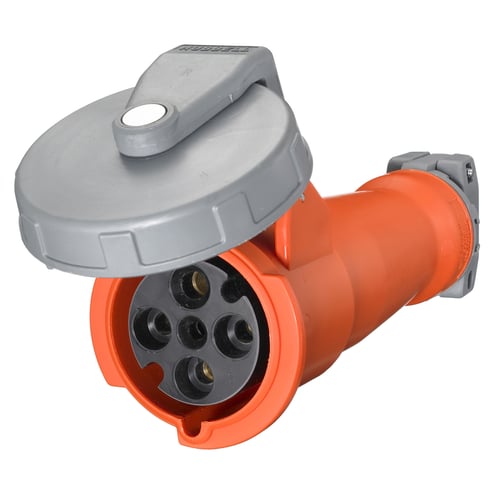

Wiring Device-Kellems HBL460C12W Female Insulated Watertight Pin and Sleeve Connector, 125/250 VAC, 60 A, 3 Poles, 4 Wires, Orange
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Orange
|
| Conductor Range |
#8AWG - #2AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Insulated Watertight
|
| Voltage Rating |
125/250
|
