O-Z/Gedney O-Z/Gedney GUAT50


Description

Industry Description

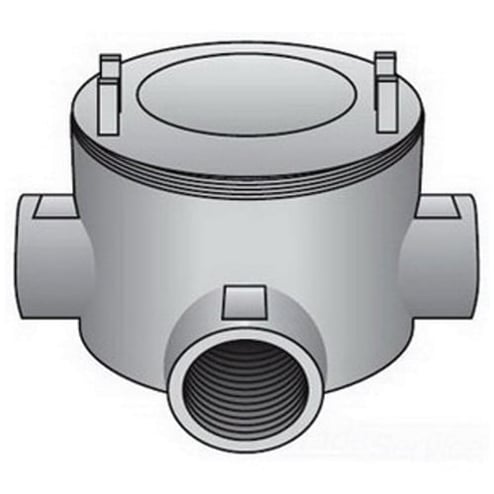

OZ-Gedney Type GUAT Conduit Outlet Box, Number Of Outlet: 3, Malleable Iron Body, Copper-Free Aluminum Cover, Size: 1/2 IN, Cable Entry: (3) 1/2 IN Hubs, 13.5 CU-IN Capacity, No, 3 IN Cover Opening, Finish: Zinc Electroplated With Aluminum Enamel, 3-5/8 IN Width, 2 IN Depth, 3-5/8 IN Height, NEMA Rating: NEMA 4, 7CD, 9EFG, Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675, Federal Specification A-A-50563, For Rigid Conduit And IMC

Modified Industry Description

1/2 IN Hazordous Location T Conduit Box

Specifications

Application
For Rigid Conduit And IMC
Brand Name
O-Z/Gedney
Cable_Entry
(3) 1/2 IN Hubs
Country of Origin
MX
Cubic_Capacity
13.5
Finish
Aluminum Enamel/Zinc Electroplated
Knockouts
False
Material
Malleable Iron
Number_Of_Outlets
3
Size
1/2
Special Features

  • Cast in brackets on cover for use with breaker bar tools for tightening/loosening
  • For use in hazardous locations to provide for change in conduit direction access to conductors and as pull and splice boxes
  • Functions as a 25 PCT fill sealing fitting when used with GUASC sealing cover
  • Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
  • O-ring gasket provides NEMA 4 rating
  • Smooth hub bushings protect insulation when pulling conductors
  • They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations
Standard
Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675, Federal Specification A-A-50563
Sub_Brand
O-Z/Gedney
Type
Dust-Ignitionproof Explosionproof
