Baldor Baldor L3403M
Baldor L3403M
Kirby Risk #: 1777036
UPC: 00781568100103, 781568100103, 78156810010
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Modified Industry Description

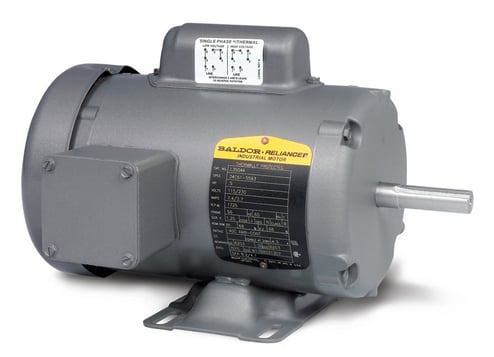

.25HP 1725RPM 1PH 60HZ 48 3411L TEFC F1
Specifications
| Amperage Rating |
2.5
|
|---|---|
| Application |
General Purpose
|
| Base |
Rigid
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Duty |
Continuous
|
| Efficiency |
55.0
|
| Enclosure |
TEFC
|
| Frame |
48
|
| Frequency_Rating |
60
|
| Full_Load_Current |
2.5/5
|
| Horsepower |
1/4
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| NEMA_Configuration |
48
|
| Phase |
1
|
| Power_Factor |
0.57
|
| Rotation |
Reversible
|
| RPM |
1725
|
| Service_Factor |
1.35
|
| Special Features |
.25HP,1725RPM,1PH,60HZ,48,3411L,TEFC,F1
|
| Speed_Rating |
1,725 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
115/230
|
