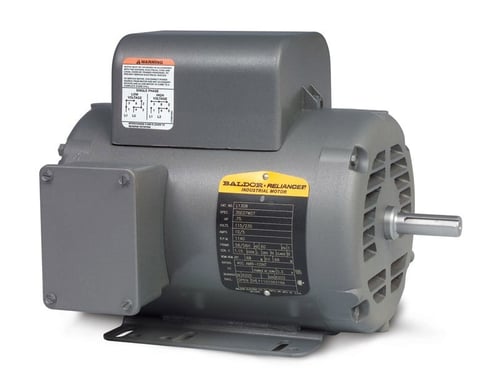

Baldor Baldor L1410T
Baldor L1410T
Kirby Risk #: 1774622
UPC: 781568101650, 78156810165, 00781568101650
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Baldor
Description
Industry Description
Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Phase: 1 PH; Voltage Rating: 230 VAC; Service Factor: 1.15; Enclosure: OPEN; Frame: 184T; Insulation Class: F; Horsepower: 5 HP; Speed Rating: 1725 RPM; Frequency Rating: 60 HZ; F
Modified Industry Description
5HP 1725RPM SINGLE PHASE MOTOR, 230V, OPEN ENCLOSURE, F1 MOUNT
Specifications
| Amperage Rating |
23
|
|---|---|
| Application |
General Purpose
|
| Base |
Rigid
|
| Brand Name |
Baldor
|
| Country of Origin |
US
|
| Duty |
Continuous
|
| Efficiency |
82.5
|
| Enclosure |
Open
|
| Frame |
184T
|
| Frequency_Rating |
60
|
| Full_Load_Current |
23
|
| Horsepower |
5
|
| Insulation_Class |
F
|
| Mounting |
F1
|
| NEMA_Configuration |
184T
|
| Phase |
1
|
| Power_Factor |
0.87
|
| Rotation |
Reversible
|
| RPM |
1725
|
| Service_Factor |
1.15
|
| Special Features |
5HP,1725RPM,1PH,60HZ,184T,3640LC,OPEN,F1
|
| Speed_Rating |
1,725 RPM
|
| Sub_Brand |
Baldor
|
| Type |
AC Motors
|
| Voltage Rating |
230
|
