B-Line B-Line B3034-3/8ZNPLT

Name: B-Line B3034-3/8ZNPLT
Brand: B-Line
SKU: 1766537
Price: 12.93 USD
Availability: InStock

B-Line B3034-3/8ZNPLT

Kirby Risk #: 1766537

UPC: 781011705404, 00781011705404, 78101170540

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

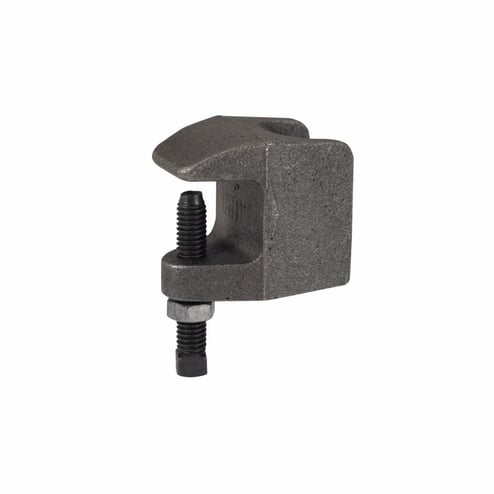

WEDGE C-CLAMP, 3/4 MAX FLANGE, 3/8-16, ZINC PLATED

Modified Industry Description

WEDGE C-CLAMP , 3/4 MAX FLANGE, 3/8 TO 16 , HOT DIP GALVANIZED

Application	PIPE HANGERS,MECH.-BEAM CLAMPS
Brand Name	B-Line
Country of Origin	MUL
Finish	Hot Dipped Galvanized
Load_Capacity	560
Material	Malleable Steel
Mounting_Type	Set Screw
Special Features	3/8-16 x 1-1/2 in set screw, 4 in maximum iron pipe size, 5 ft/lb setscrew torque, 3/4 in throat opening Beveled lip allows hanging from top flange where clearance is limited Cast malleable steel with hardened cup point set screw and jam nut For hanging from steel beam where flange thickness does not exceed 3/4 in Hanger rod not included May be installed with the set screw in the up or down position May be used on top or bottom flange of the beam Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp The rear window design permits inspection of thread engagement
Standard	UL (CANADA AND US), FM, Federal Specification WW-H-171E, A-A-1192A Type 23
Sub_Brand	EATON B-LINE SERIES
Trade_Size	3/4
Type	Beam Clamp
Width_2	3.1250
