Philips Advance Philips Advance 71A7801001D


Description

Industry Description

Ballast, High Pressure Sodium, Enclosed, Input Voltage: 120/277 VAC, Input Amps: 1.0/0.5 Amp, Minimum Starting Temperature: -40 Degree F, Lamp Wattage: 50, KIT

Modified Industry Description

HPS BAL 50W S68 120/277V KIT

AD Description

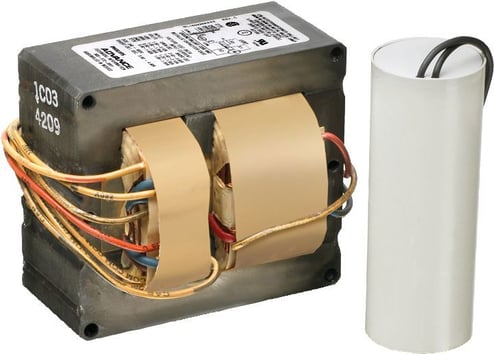

Advance 71A7801001D HID Magnetic High Pressure Sodium Ballast, High Pressure Sodium Lamp, 50 W, 120/277 VAC, Pulse, 1 Ballast Factor

Vendor Description

Philips Advance HID ballasts are available to operate the wide variety of metal halide, high pressure sodium and low pressure sodium lamps available in today's marketplace. Like fluorescent, HID lamps are gas discharge lamps. Light is produced by an arc discharge between two electrodes located at opposite ends of an arc tube within the lamp's outer glass envelope. The ballast is the lamp's power supply; its purpose is to provide proper starting and operating voltage and current to initiate and sustain this arc. Philips furnishes 120/208/240/277 Philips Advance Quadri-Volt core and coil ballasts to allow the stocking distributor to conveniently meet the replacement and retrofit needs of customers. In addition, we now offer 120/208/240/277/480 VAC 5-TAP core and coil ballasts for the most popular applications. 5-TAP ballasts add the 480 VAC input lead to the Quadri-Volt designs. A Quadri-Volt or 5-TAP core and coil, along with the appropriate capacitor, igniter (where required), mounting bracket and hardware and installation instructions are packed in a space saving shipping carton. These "kits" eliminate the need for distributors or end users to stock loose components of single voltage ballasts for 120, 208, 240, 277 and even some 480 VAC applications, though single voltage kits for 480 VAC applications will also be available.

Specifications

Amperage Rating
0.61/0.26
Application
Lighting Luminaire Component
Ballast_Factor
1
Brand Name
Philips Advance
Country of Origin
USA
DIMMABLE
False
Frequency_Rating
60
Lamp_Type
High Pressure Sodium
Microfarad
5
Minimum_Starting_Temperature
-40
Number_Of_Lamps
1
Power_Factor
1
Special Features

  • 1-1/4 in Dia x 2-1/4 in H oval capacitor
  • 1/0.45 A input current (open circuit), 0.65/0.3 A input current (starting), 0.6 to 0.8/0.25 to 0.35 A input current (short circuit), 0.61/0.26 A input current (nominal)
  • 3 x 4 in (2 coil) core
  • 5 Mfd capacitor
  • Ballast replacement kit with dry film capacitor
  • The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
  • The core and coil also forms the nucleus of Philips Advance five other ballast configurations
  • UL insulation class H of 180 deg C
Standard
ULR;CSA certificate;RoHS Compliant
Start_Type
Pulse
Sub_Brand
Philips Advance
Thermal_Protection
Class P
Type
HID Magnetic
Vendor
Signify
Voltage Rating
120/277
Wattage
66
