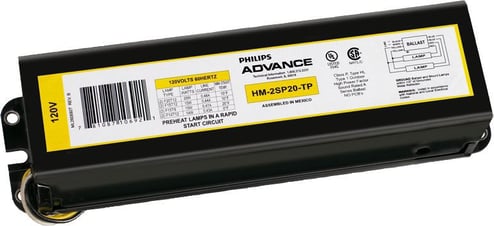

Philips Advance Philips Advance HM2SP20TPI


Description

Industry Description

Ballast, Fluorescent, Electromagnetic, Input Voltage: 120 VAC, Input Amps: 0.47 Amp, Ballast Factor: 0.99, Minimum Starting Temperature: 20 Degree F, Number of Lamps: 2, Lamp Wattage: 15, Lamp Type: Trigger Start Ballast, Preheat Lamp, Features: High Power Factor, Total Harmonic Distortion: <20 Percent

Modified Industry Description

MAG BALLAST (2) F20T12 PH 120V

AD Description

Advance HM2SP20TPI Electromagnetic Fluorescent Ballast, T12 Lamp, 20 W Lamp, 120 VAC, Pre-Heat, 0.9 Ballast Factor

Specifications

Amperage Rating
0.47
Ballast_Factor
0.9
Brand Name
Philips Advance
Country of Origin
USA
Frequency_Rating
60
Lamp_Type
T12 Fluorescent
Material
Metal
Minimum_Starting_Temperature
20
Number_Of_Lamps
2
Power_Factor
0.9
Special Features

  • 112 to 127 VAC applied voltage limits
  • 20 to 24 dB average ambient noise level
  • 60 Hz lamp operation eliminates possible EMI/RFI interference
  • Available for many fluorescent lamp types sold today, including preheat, rapid start, 2-pin CFL, slimline, high output, very high output and circline
  • High power factor
  • Only choice for many low volume lamp types on the market
  • Series lamp connection
  • Yellow color label identification
Start_Type
Preheat
Sub_Brand
Philips Advance
Thermal_Protection
Class P
Total_Harmonic_Distortion
10%
Type
Magnetic Fluorescent
Vendor
Signify
Voltage Rating
120
Wattage
20
