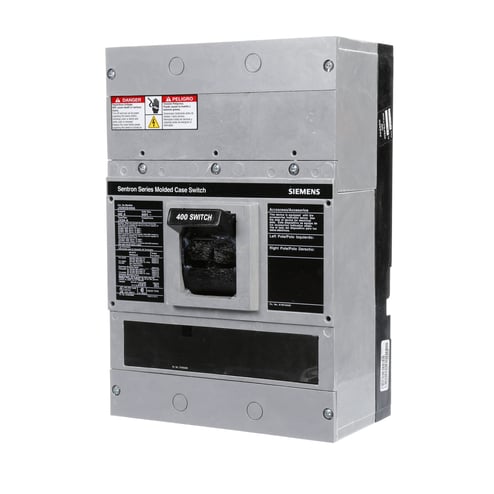

Siemens Siemens JXD63S400A
Siemens JXD63S400A
Kirby Risk #: 559694
UPC: 78364321369, 783643213692, 00783643213692
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC ONLY TRIPUNIT. ASSEMBLED MOLDED CASE SWITCH (BREAKER) JD FRAME WITH STANDARD BREAKING CAPACITY. 400A 3-POLE 600V 6000A SELF-PROTECTIVE INSTANTANEOUS OVERRIDE. NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 7.50 x 11.0 x 4.00.
Modified Industry Description
SWITCH RATED CB
AD Description
Siemens Sentron™ JXD63S400A Type JXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
400
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
JD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Poles |
3
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
6000
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600 VAC/250 VDC
|
| Width_2 |
40.0000
|
