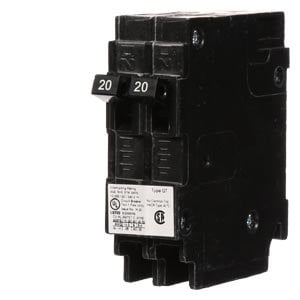

Siemens Siemens Q2020NC


Description

Industry Description

Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Duplex, Triplex, Quadplex are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. BREAKER 20/20A 1P 120V 10K QT NON-CTL

Modified Industry Description

20/20A 120/240V - 1 POLE TYPE QT NCL CIRCUIT BREAKER

AD Description

Siemens Q2020NC Type QT Duplex Low Voltage Miniature Non-Current Limiting Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip

Specifications

Amperage Rating
20
Brand Name
Siemens
Connection
PLUG-IN
Country of Origin
MX
Frame
QT
Frequency_Rating
60
Interrupt_Rating
10
Mounting
Plug In
Number_Of_Poles
1
Operating_Temperature
40 Deg C
Phase
1
Poles
1
Special Features

  • 14 to 6 AWG copper aluminum wire range
  • 20 to 20 A
  • Circuit breaker has toggle type switch and offers long time instantaneous functions to perform efficiently
  • It is ideal to use in Siemens EQ, ultimate, ITE and Gould loadcenters
  • It offers circuit limiting with rejection clip and uses plug-in mounting to hold firmly
  • Siemens 2-pole duplex circuit breaker features high quality thermal magnetic case for extra protection
  • These space saver duplex breakers combine two independent 1/2 in breaker poles in a common unit
  • This unit plugs into one loadcenter stab and requires one panel space
Standard
UL 489
Sub_Brand
Siemens
Trip_range
Thermal Magnetic
Trip_Type
Thermal Magnetic
Type
Duplex Low Voltage Miniature Residential
Voltage Rating
120
Width_2
3.7000
Width_3
8.0000
