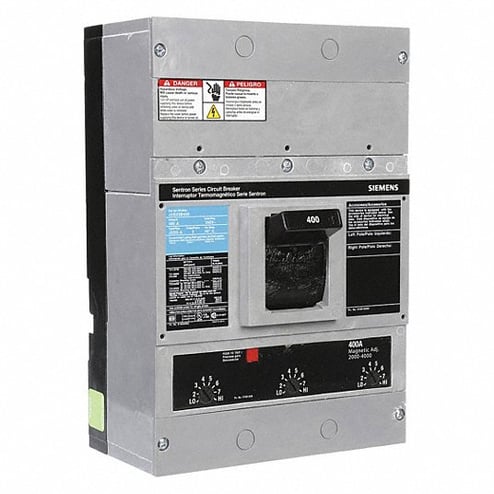

Siemens Siemens JXD63B400L
Siemens JXD63B400L
Kirby Risk #: 559002
UPC: 78364300966, 783643009660, 00783643009660
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 400A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
Modified Industry Description
3P 400A 600V BRKER
AD Description
Siemens Sentron™ JXD63B400L Type JXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
400
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
JD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Poles |
3
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Trip_range |
2000-4000
|
| Trip_Type |
Thermal-magnetic
|
| Type |
JXD6
|
| Voltage Rating |
600//250
|
