Microswitch Microswitch BZ-3YWT82

Microswitch BZ-3YWT82

Kirby Risk #: 555214

UPC: 66119114103, 661191141035, 00661191141035

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Microswitch

Description

Modified Industry Description

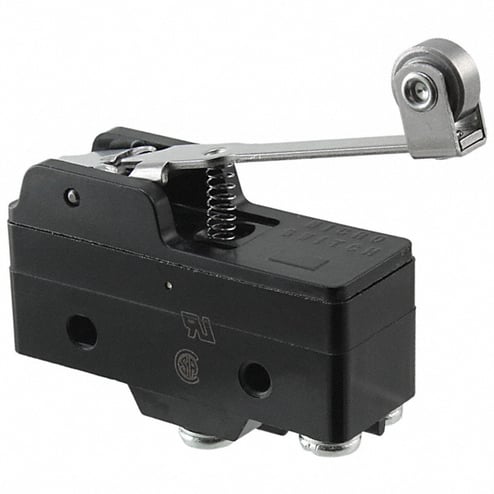

SPDT ROLLER LEVER ACTUATOR

Action	Snap
Actuator	Roller Lever
Amperage Rating	5
Brand Name	Microswitch
Closed_Contact_Resistance	100000
Connection	Screw Terminal
Contact_Configuration	SPDT
Contact_Rating	5 A at 250 VAC
Enclosure	Miniature BZ Series
Frequency_Rating	50/60
Material	Phenolic
Number_Of_Poles	1
Operating_Cycles	20000000
Operating_Temperature	-55 to 85
Size	2 in L x 0.7 in W x 1 in H
Special Features	0.015 to 0.075 in maximum differential travel 0.139 in size mounting screw 0.156 in minimum over travel 0.21 N minimum release force 1 in mounting centers 1.188 in +/- 0.03 in operating position 1.25 N maximum operating force 1.9 in actuator length 3 in-lb tightening torque Accepted world wide standard large basic switch Elongated mounting hole for easier, more accurate mounting General purpose phenolic housing with silver contact material Long mechanical life up to 20000000 cycles at 95% survival Low operating force and differential travel Recommended for MIL-PRF-8805 split contact applications Upto 20000000 mechanical cycles at 95% survival and 100K electrical operations at rated load
Type	Premium Standard
Voltage Rating	250
