Midwest Midwest U058C


Description

Industry Description

Midwest ElectricÂ’s Temporary Power and Power Outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary Power and Power Outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.

Modified Industry Description

SURFACE POWER OUTLET 50/30

AD Description

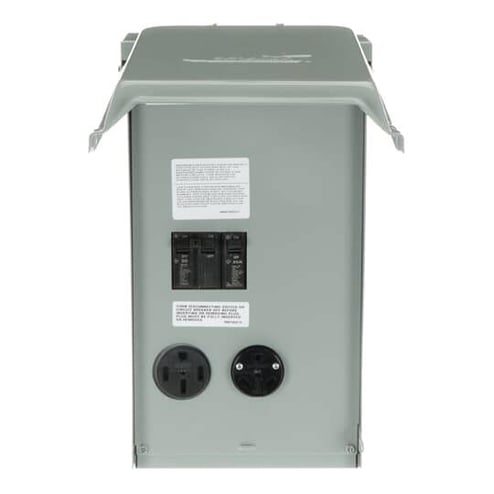

Midwest® GE U058C Heavy Duty Unmetered Power Outlet Panel, 120/240 VAC, 80 A, 1 Phase, 14 to 8 AWG, 14 to 2 AWG, 12 to 8 AWG, 12 to 2 AWG Wire, Surface Mount

Vendor Description

Midwest Electric's Temporary power and power outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.

Specifications

Amperage Rating
80
Brand Name
Midwest
Cable_Entry
Knockout Code (B): 1, 1-1/4, 1-1/2 IN; Knockout Code (D): 3/4, 1, 1-1/4 IN; Knockout Code (G): 1/2, 3/4, 1 IN
Country of Origin
UKN
Cutout_Size
6 X 14
Material
G90 Zinc Coated Steel
Phase
1
Special Features

  • 1-head
  • 6 x 14 cabinet size
  • Circuit protection, hub provision
  • LC33N1 load center
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
Heavy Duty
Voltage Rating
120/240
Width_2
9.7500
Width_3
36.0000
