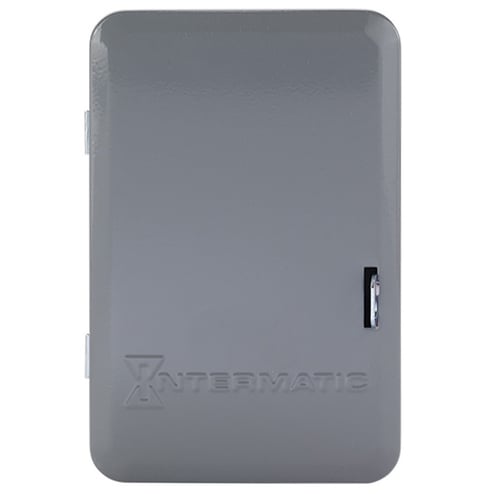

Intermatic Intermatic T101


Description

Industry Description

The heavy duty mechanical time switch is designed for industrial, commercial and residential applications. Features a high horsepower rating that is ideal for loads up to 40 amps resistive from 125-volts and direct 24-hour time switch control of most loads. All models are equipped with one "ON" and one "OFF" tripper. The unit contains a 1-circuit standard On/Off Single Pole Single Throw 40 Amps, 4000 watt capacity, 125 volts.

Modified Industry Description

40A 125V - 24 HOUR MECHANICAL TIMER

AD Description

Intermatic® T101 T100 Electro Mechanical Timer Switch, 24 hr Setting, 125 VAC, 5 hp, 1NO SPST Contact, 1 Poles

Vendor Description

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Specifications

Action
ON/OFF
Amperage Rating
40
Application
Mechanical Time-Control
Brand Name
Intermatic
Connection
Teeter Type
Contact_Configuration
SPST
Contact_Rating
2 HP
Country of Origin
MX
Enclosure
NEMA 1
Environmental_Conditions
INdoorOutdoor
Frequency_Rating
60
Horsepower
5
Mounting
3 hole-wall mnt.
Mounting_Type
Wall
Number_Of_Poles
1
Operating_Cycles
6000 Min.
Operating_Temperature
-40F to 130F
Pilot_Duty
1000 VA
Size
5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Special Features

  • 1000 VA pilot duty
  • 16 A, 277 VAC electronic ballast
  • 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor power
  • 24 hr time duration
  • 3 W power
  • 40 A at 120 to 480 VAC (resistive), 40 A (inductive), 40 A at 120 to 277 VAC (tungsten)
  • 60 Hz frequency
  • Direct 24 hr control of most loads
  • Manual override
  • Provides direct 24 hr control of most loads, 1 to 12 ON/OFF operations each day, minimum ON/OFF times of 1 hr, manual override
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of 1 hr
Standard
UL917
Sub_Brand
Intermatic
Switch_Type
SPST
Timer_Duration
24
Timing_Range
24 hr.
Type
Electro Mechanical
Voltage Rating
125
Wattage
3 W.Max.
