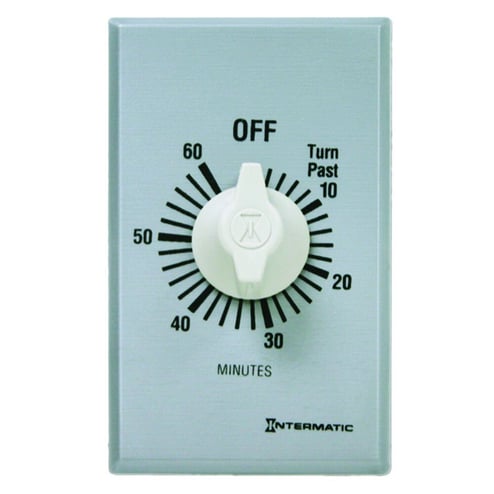

Intermatic Intermatic FF60MC


Description

Industry Description

This 60 minCommercial Auto-Off Timer is designed to replace any standard wall switch - single or multi-gang. This energy-efficient mechanical timer does not require electricity to operate. In addition, it automatically limits the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Modified Industry Description

10A 125/277V - 60 MINUTE WHITE SPRING WOUND TIMER

AD Description

Intermatic® FF Series Auto Off Commercial Mechanical Spring Wound Timer, 60 min Time Setting, 125/257 VAC, 1 hp, 2 hp, 1NO SPST Contact Form, 1 Pole

Vendor Description

The FF series commercial countdown timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. A commercial brushed metal look plate (plastic construction) meets NEC requirements.

Specifications

Action
Schedule
Amperage Rating
15
Application
Auto-off Timer
Base
Single Gang Ground Bracket
Brand Name
Intermatic
Color
Aluminum
Connection
Teeter Type
Contact_Configuration
SPST
Contact_Rating
20 Indductive/7 Tungsten at 125 AC
Country of Origin
TN
Environmental_Conditions
Indoor
Frequency_Rating
50/60 Hz
Horsepower
1, 2
Initiation
Dial
Mounting
Single Gang Junction Box
Mounting_Type
Wall
Number_Of_Poles
1
Operating_Temperature
-40 DEG F to 155 DEG F (-40 DEG C to 68 DEG C)
Phase
1, 2 PH, 3
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Special Features

  • 1 hp at 120 VAC, 2 hp at 240 VAC motor power
  • 50/60 Hz frequency
  • 7 A at 125 VAC (tungsten), 20 A at 125 VAC, 10 A at 250/277 VAC (resistive)
  • Automatically limit the on times
  • Brushed metal finish
  • Commercial auto off timer
  • Energy efficient mechanical timers do not require electricity to operate
  • Incandescent-fluorescent CFL/LED compatible
  • No hold
  • Press on knob design ensures quick and easy installation
  • Provide direct replacement of a standard wall switch in single or multi-gang 2-1/2 in deep junction boxes
  • Rugged time dial plate easily withstands the abuse encountered in commercial environments
  • Single or multi-gang with no field modifications required
  • Spiral time scale to provide easy selection of the time setting
  • Standard industry accepted molded plate and knob
  • Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates
  • Time saving up front terminal connection with teeter type terminals
Standard
UL917
Sub_Brand
Intermatic
Timer_Duration
60
Timing_Range
60 MIN
Type
Auto Off Commercial Mechanical
Voltage Rating
125/257
