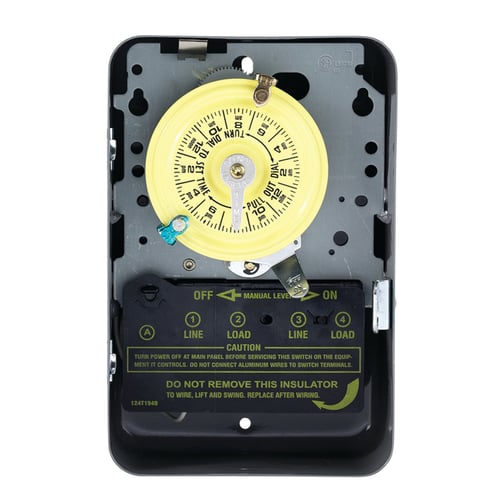

Intermatic Intermatic T103


Description

Industry Description

The NEMA 1 - 125 V 2HP DPST The heavy duty mechanical time switch is designed for industrial, commercial and residential applications. Features a high horsepower rating that is ideal for loads up to 40 amps resistive from 120-volts and direct 24-hour time switch control of most loads. All models are equipped with one "ON" and one "OFF" tripper. The unit contains a 1-circuit standard On/Off Double Pole Single Throw 40 Amps, 4000 watt capacity, 120 volts.

Modified Industry Description

40A 120V - 24 HOUR DPST MECHANICAL TIMER

Specifications

Action
DPST
Amperage Rating
40
Application
Commercial, Industrial, Residential, Indoor, HVACR
Brand Name
Intermatic
Connection
Teeter Type
Contact_Configuration
2 NO
Contact_Rating
40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 (Tungsten)
Country of Origin
MX
Enclosure
NEMA 1 Steel
Frequency_Rating
60
Horsepower
5
Mounting
Wall Mount
Mounting_Type
Wall
Number_Of_Poles
2
Operating_Temperature
-40 to +130 DEG F, -40 to +54 DEG C
Pilot_Duty
1000 VA
Size
5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Special Features

  • 1000 VA pilot duty
  • 16 A, 277 VAC electronic ballast
  • 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor power
  • 24 hr time duration
  • 3 W power
  • 40 A at 120 to 480 VAC (resistive), 40 A (inductive), 40 A at 120 to 277 VAC (tungsten)
  • 60 Hz frequency
  • Direct 24 hr control of most loads
  • Manual override
  • Provides direct 24 hr control of most loads, 1 to 12 ON/OFF operations each day, minimum ON/OFF times of 1 hr, manual override
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of 1 hr
Standard
cCSAus Certified, HVACR
Sub_Brand
Intermatic
Switch_Type
DPST
Timer_Duration
24
Timing_Range
0-24
Type
Electro Mechanical
Voltage Rating
125
Wattage
3
