Midwest Midwest U013


Description

Industry Description

Midwest ElectricÂ’s Temporary Power and Power Outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary Power and Power Outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.

Modified Industry Description

POST MTR PWR OUTLET

AD Description

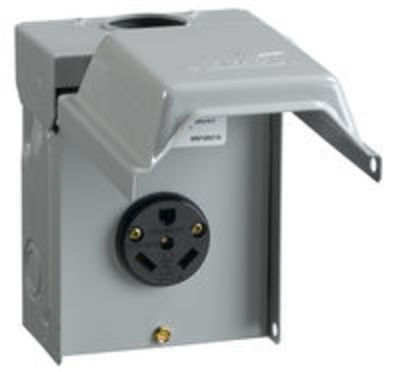

Midwest® GE U013 Unmetered Power Outlet, 120 VAC, 30 A, 1 Phase, Surface Mount

Vendor Description

Midwest Electric's temporary power and power outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without over current protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.

Specifications

Amperage Rating
30
Brand Name
Midwest
Cable_Entry
Knockout Code (F): 1/2, 3/4 IN; Knockout Code (G): 1/2, 3/4, 1 IN; Knockout Code (H): 1/2, 3/4, 1, 1-1/4 IN
Country of Origin
UKN
Cutout_Size
5 X 7
Material
Steel
Phase
1
Special Features

  • 5 x 7 in cabinet size
  • All GFCI Duplexes are listed as weather resistant and tamper resistant as required by 2008 NEC in Article 406.8 and 406.11
  • All in one construction for factory assured terminations
  • Cover design allows cords to exist while maintaining the NEMA 3R integrity
  • Deadfront construction prevents accidental contact with live parts
  • G90 galvanized steel with superior electro deposition paint finish, provides excellent corrosion protection
  • Hub provision
  • No circuit protection
  • No loop feed
  • Padlockable door to help prevent unauthorized access
  • Rolled edge door for cord protection
  • Wide assortments of concentric knockouts offer flexibility in the installation
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
Unmetered Power Outlet
Voltage Rating
120
Width_2
6.0000
Width_3
36.0000
