Midwest Midwest U011C010


Description

Industry Description

Midwest ElectricÂ’s Temporary Power and Power Outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary Power and Power Outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.

Modified Industry Description

TEMPORARY SERV(2 GFI RECEPT)

AD Description

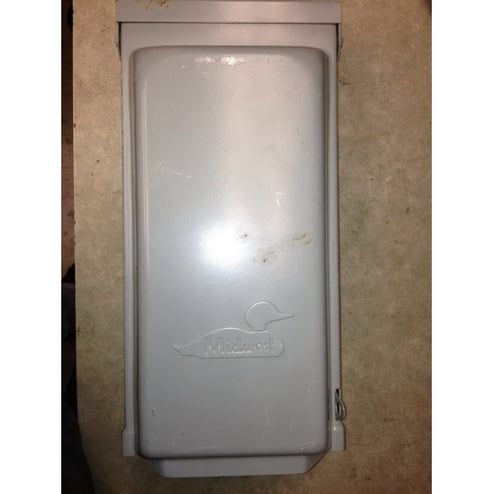

Midwest® GE U011C010 Unmetered Power Outlet Pedestal, 120/240 VAC, 70 A, 1 Phase, 14 to 2 AWG, 14 to 10 AWG Wire, NEMA 3R Enclosure

Vendor Description

Midwest Electric's temporary power and power outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.

Specifications

Amperage Rating
70
Brand Name
Midwest
Cable_Entry
Knockout Code (G): 1/2, 3/4, 1 IN; Knockout Code (N): 1/2, 3/4, 1, 1-1/4, 1-1/2 IN
Country of Origin
UKN
Cutout_Size
6 X 14
Material
Steel
Number_Of_Cutouts
1
Phase
1
Special Features

  • All GFCI Duplexes are listed as weather resistant and tamper resistant as required by 2008 NEC in Article 406.8 and 406.11
  • All in one construction for factory assured terminations
  • Continuous duty meter socket with meter guides and reinforced jaws - ringless and ring type utility accepted meter sealing accommodations
  • Deadfront construction prevents accidental contact with live parts
  • Door has padlock provisions to prevent unauthorized access one heads (2) 5-20R2GFCI receptacles
  • GFCI duplex receptacle options
  • Hub provision
  • LC33N7 load center
  • No loop feed
  • Provide circuit protection
  • Rolled edge door for cord protection
  • Suitable for service equipment
  • Welded flange, NEMA 3R construction for lasting service in outdoor installations
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
Unmetered Power Outlet
Voltage Rating
120/240
Width_2
10.7500
Width_3
36.0000
