Midwest Midwest R011C010


Description

Industry Description

Midwest ElectricÂ’s Temporary Power and Power Outlets are a means of providing power required by various construction trades, residential sites, and mobile electrical applications. Temporary Power and Power Outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering, and/or pedestal mounting functions, in a single enclosure of G-90 zinc-coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism, and normal field use.

Modified Industry Description

40A WP MTR SKT 2GFI RECEPTS

AD Description

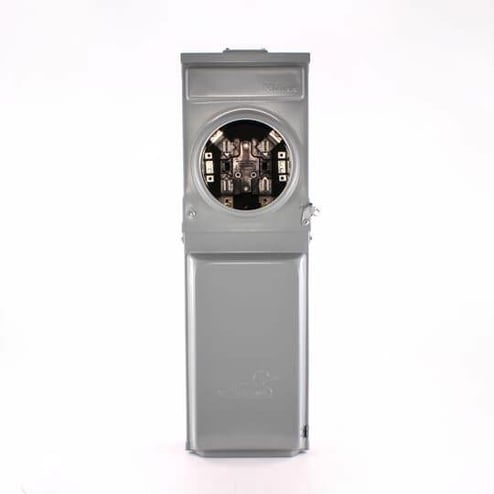

Midwest® GE R011C010 Ringless Metered Power Outlet, 120/240 VAC, 100 A, 1 Phase, NEMA 3R Enclosure

Vendor Description

Site-Power™ temporary power equipment from Midwest electric combines the metering, circuit protection and power outlet combinations that are required on most construction sites. Every unit is delivered to the jobsite ready to go with factory installed and wired components - giving you the assurance needed for a reliable and safe temporary power unit. All Site-Power™ enclosures are constructed from heavy gauge G90 galvanized steel for superior corrosion resistance. The durable polyester powder coat finish resists chipping and fading. The equipment door is designed to protect power cords and plugs and has a padlock provision to guard against unauthorized use or vandalism.

Specifications

Amperage Rating
100
Brand Name
Midwest
Country of Origin
UKN
Material
Steel
Phase
1
Special Features

  • (5) 1/2 in, 3/4 in, 1 in, (2) 1 in, 1-1/4 in, 1-1/2 in, (1) 3/4 in, 1 in, 1-1/4 in knockouts
  • 9 x 30 in cabinet
  • All components factory wired and assembled, reducing installation time
  • All terminals accept copper or aluminum wire for added installation flexibility
  • All units with factory installed copper/aluminum equipment ground lug
  • Broad range of concentric knockouts to accommodate varied wiring needs
  • Continuous duty meter socket with meter guides and reinforced jaws - ringless and ring type
  • Deadfront construction prevents accidental contact with live parts
  • Door removable for installation ease, stay open position for user convenience
  • Durable polyester powder coat finish resists chipping and fading
  • Hub opening
  • Midwest Electric's temporary power and power outlets are a means of providing power required by various construction trades, residential sites and mobile electrical applications
  • Padlock provision to prevent unauthorized entry
  • Rolled edge door for cord protection
  • Temporary power and power outlets offer one or more receptacles, with or without over current protection, disconnecting, metering and pedestal mounting functions, in a single enclosure of G90 zinc coated steel
  • The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism and normal field use
  • Utility accepted meter sealing accommodations
  • Wide range of receptacle configurations
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
Ringless
Voltage Rating
120/240
Width_2
10.0000
Width_3
36.0000
