Burndy Burndy YAZ31TC38


Description

Industry Description

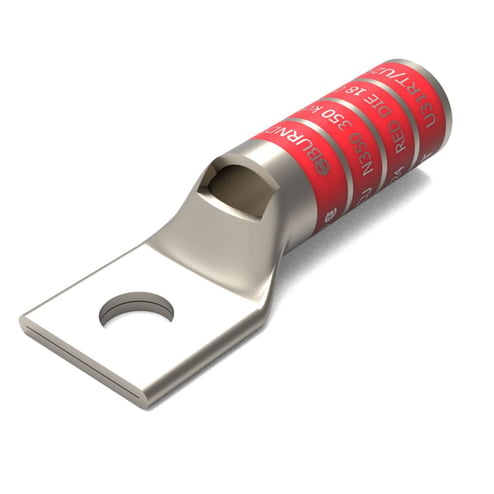

Copper Compression Lug, 1 Hole w/ Inspection Window, 350 kcmil, 3/8" Stud, Long Barrel, Tin Plated.

Modified Industry Description

350 MCM COPPER COMPRESSION LUG, 2 HOLE W/ INSPECTION WINDOW, 3/8 IN STUD, LONG BARREL

AD Description

BURNDY® HYLUG YAZ31TC38 1-Hole Non-Insulated Compression Lug With Inspection Window, 350 kcmil Stranded Copper Conductor, Die Code: 18/324, 3/8 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Code Conductor
Brand Name
Burndy
Cable_Size
350 KCMIL, 185 SQ-MM For Class 2 Conductor
Color
Red
Conductor Material
Copper
Conductor Size
350
Country of Origin
US
Insulation
Uninsulated
Material
Copper
Number_Of_Holes
1
Package_Quantity
1
Special Features

  • 300 (91) navy cable size, 300 kcmil copper stranded conductor
  • Electro tin plated
  • For mechanical: MD6, OUR840, MD7-34R tool, (4), W31VT die, hydraulic: BCT500HS, Y500CTHS tool, (4), W31VT, W31RT die, Y35, Y39, Y750, PAT750 tool, (4), U31RT, U29ART die, Y46 tool, (4), U31RT, U29ART die with PUADP-1 adapter, dieless tools (number Of crimps): Y644HS tool, (1), Y81KFT, (3), Y81KFTMBH, PAT81KFT-18V installation tool
Standard
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified
Stud_Size
3/8
Sub_Brand
Burndy
Temperature_Rating
90
Type
1-Hole Non-Insulated
Voltage Rating
600 VAC to 35 kV
