Burndy Burndy YGHP2C2


Description

Industry Description

Cu Compression Ground Tap Connector, #6 Sol- #2 Str(Run & Tap).

Modified Industry Description

COMPRESSION GROUND TAP

AD Description

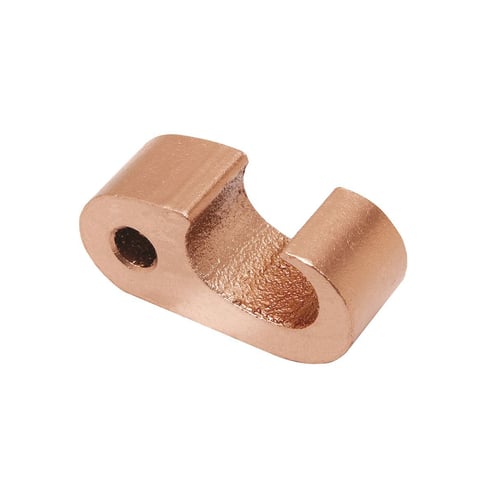

BURNDY® Hytap™ YGHP2C2 Type YGHP-C Mechanical Compression Ground Tap Connector, Figure 6, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap, Copper

Vendor Description

BURNDY® has developed an irreversible compression ground system which meets the most stringent safety and performance requirements, including those of OSHA and nuclear power plant design. Performance excellence and long life expectancy are the system's basic design guidelines. It is a complete system which consists of connectors for grid cross connections, taps, splices, cable to ground rod, ground plates and terminations.

Specifications

Application
For Direct Burial In Earth And Concrete
Conductor Type
Solid/Stranded Copper
Country of Origin
US
Dimensions
3/4 in L
Finish
Unplated
Length1
0.7500
Material
Copper
Special Features

  • 2, 4, 6 AWG conductor run size
  • 2, 4, 6 AWG tap size
  • 4 die sets and 8 connectors can accommodate a conductor range from 8 AWG solid through 500 kcmil plus 1/2 in, 5/8 in and 3/4 in copper bonded ground rods
  • For Y35, Y39, Y750 Tool, U0 Die, Y45 Tool, U0 die with PT6515 adapter, Y46 Tool, U0 die with puadp-1 adapter, PAT750-18V tool and U0 die
  • Irreversible compression ground tap figure 6 can be used as a tap connector or as a tap splice connector
  • Pre-filled with PENETROX® compound and strip sealed
Standard
Direct Burial
Sub_Brand
HYTAP
Type
Type YGHP-C Mechanical
