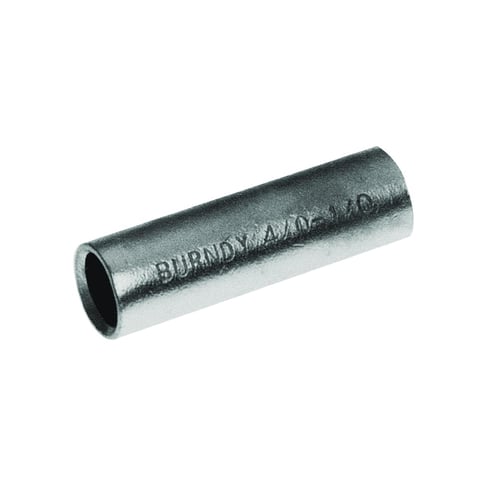

Burndy Burndy Y2827R


Description

Industry Description

Copper Compression Reducing Adapter, 4/0 AWG(Str)-3/0 AWG(Str), 1.75" Long, Tin Plated.

Modified Industry Description

REDUCER ADAPTER COMPR 4/0 - 3/0 AWG

AD Description

BURNDY® Y2827R Type Y-R Uninsulated Compression Reducing Adapter, 600 to 35000 VAC, 4/0 to 3/0 AWG Conductor, Copper

Vendor Description

The Y-R reducing adapter has been designed to allow large size, long barrel, copper long barrel HYDENT™, HYSPLICE™ and HYTEE terminals, splices, and T taps to be used on smaller conductor sizes. To use, simply insert the reducer into the barrel, insert the wire into the reducer adapter and crimp the outer barrel using its recommended tooling.

Specifications

Application
For Copper Conductors, Allowing Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes
Brand Name
Burndy
Conductor Size
4/0 to 3/0
Country of Origin
US
Finish
Electro-Plated Tin
Insulation
None
Material
Copper
Package_Quantity
1
Size
1.75 IN Length X 0.534 IN MaXimum Outer-Diameter
Special Features

  • Length fits the long barrel connector design (YS, YA), can be used on all long barrel connectors, field cut to fit shorter length compression barrels (YS-L, YA-L)
  • Long barrel
  • Manufactured from high conductivity electrolytic copper and electro-tin-plated
  • Provides maximum conductivity low resistance and ductility for an excellent combination of electrical and crimp forming properties, and provides long lasting corrosion resistance
  • Same die set for all legs of the connection, permits the same tool and die combination normally used on the compression barrel
  • Side A: 4/0 AWG Stranded, side B: 3/0 AWG stranded
  • Wide range of conductors are accommodated, lowers inventory requirements and affords maximum versatility
Standard
UL Listed, RoHS Compatible
Sub_Brand
Burndy
Temperature_Rating
194
Type
Type Y-R Uninsulated
Voltage Rating
600 to 35000
