Burndy Burndy YHD6

Name: Burndy YHD6
Brand: Burndy
SKU: 543718
Price: 9.02 USD
Availability: InStock

Burndy YHD6

Kirby Risk #: 543718

UPC: 78181013913, 781810139134, 00781810139134, 50781810139139

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

Compression Line Tap Connector for Alumminum to Copper and Aluminum to Aluminum applications,1.42 H,2.25 L,.83 W.

AD Description

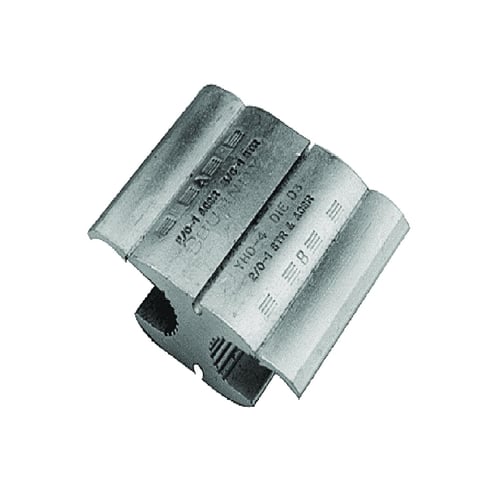

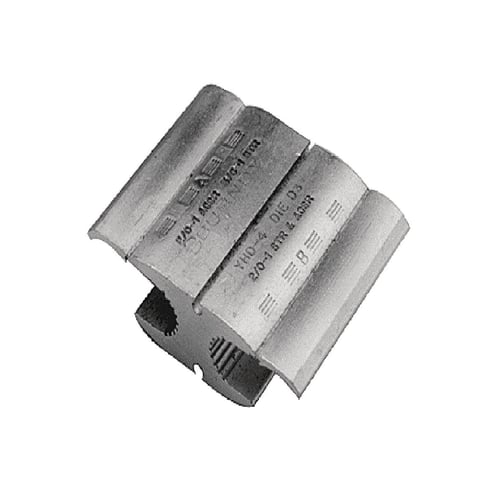

BURNDY® LOKTAP™ YHD6 Type YHD Compression Line Tap Connector, Figure H, 3/0 to 300 kcmil Main/Run, 1 to 3/0 AWG Tap, Aluminum

Application	For Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors
Country of Origin	MX
Length1	2.2500
Material	Aluminum
Special Features	2/0, 3/0, 1/0, 1 AWG tap size 4/0, 3/0 AWG, 250, 256, 266 (18/1), 300 kcmil conductor run size BURNDY® seven connector program accommodates a conductor range from 6 AWG solid to 4/0 AWG ACSR Designed to be installed with burned mechanical or hydraulic tools and matching O and D3 die set Feature a C groove on both sides of the connector for use in street lighting applications from 14 AWG solid to 10 AWG solid LOKTAP compression connectors are high quality, range-taking devices which accommodate combinations of aluminum to copper, and aluminum to aluminum conductors
Standard	TAA Compliant (All status valid till December 2024)
Sub_Brand	LOKTAP
Type	YHD
