Burndy Burndy YA44LTC12FX

Industry Description

Copper Compression Lug, 1 Hole w/ Inspection Window, 777.7 Flex, 1/2"Stud, Short Barrel, Tin Plated.

AD Description

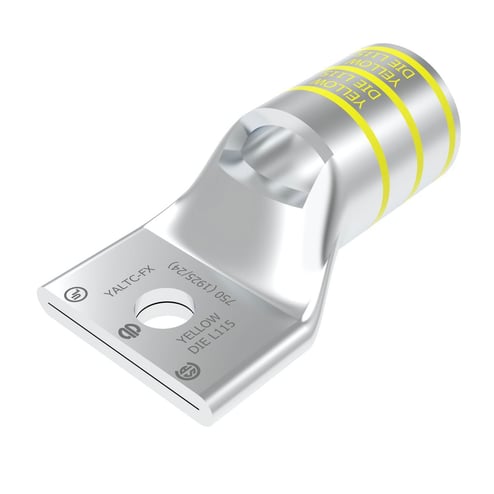

BURNDY® HYLUG YA44LTC12FX YA-L-FX 1-Hole Compression Lug With Inspection Window, 777.7 kcmil Aluminum/Copper Conductor, Die Code: L115, 1/2 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY® oxide inhibiting compound.
