Burndy Burndy YA26N
Burndy YA26N
Kirby Risk #: 542691
UPC: 78181001889, 00781810018897
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Copper Compression lug, 1 Hole w/o Inspection Window, 2/0 AWG, 1/2" Stud, Long Barrel, Tin Plated.
Modified Industry Description
CU COMPR LUG 1 HOLE 2/0 AWG 1/2 STUD LONG
AD Description

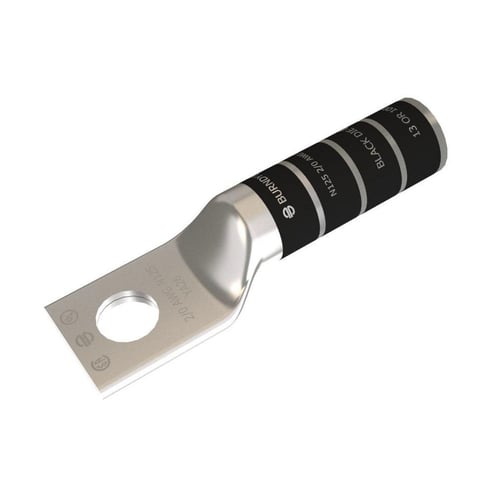

BURNDY® HYLUG YA26N 1-Hole Non-Insulated Compression Lug, 2/0 AWG Stranded Copper Conductor, Die Code: 13, 1/2 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Color |
Black
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
2/0
|
| Country of Origin |
US
|
| Insulation |
None
|
| Length1 |
3.2100
|
| Material |
Copper
|
| Series |
YA Series
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole Non-Insulated
|
| Voltage Rating |
600 VAC to 35 kV
|
