Burndy Burndy YSH2929


Description

Industry Description

Copper Split Compression Wye Tap Connector, 250-2 (4/0-2) (Tap), Provides maximum design and installation flexibility.

Modified Industry Description

CU SPLIT COMPR WYE TAP CONN 2 - 250 AWG

AD Description

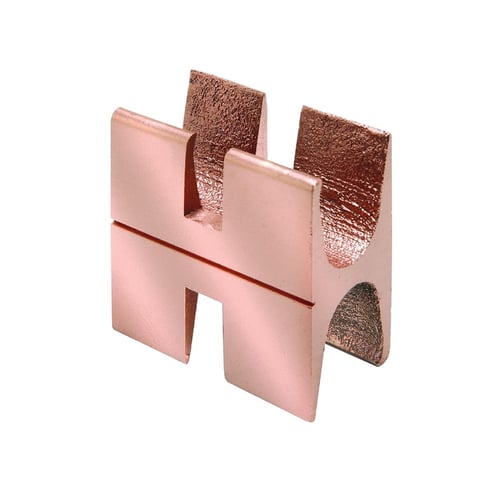

BURNDY® CRIMPIT™ YSH2929 Type YSH Double Compression Wye Tap Connector, Figure H, 1 Taps, 2 AWG to 250 kcmil Main/Run, 2 AWG to 250 kcmil Tap, Copper

Specifications

Application
For High Voltage (15 KV) Power Cables With Copper Conductors
Brand Name
Burndy
Conductor Type
Copper/Flexible Copper
Conductor Size
Run: 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 KCMIL
Country of Origin
US
Finish
Tin Plated
Material
Copper
Package_Quantity
1
Size
1.85 IN Height X 0.9 IN Width X 3 IN Length
Special Features

  • 4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250 kcmil conductor run size
  • 4/0, 2/0, 3/0, 2, 1, 1/0 AWG, 250 kcmil tap size
  • All (B/B, B/I, I/B, I/I) combinations acceptable each connector has many copper cable combination applications allowing maximum flexibility for the design and installation of a system
  • Balance may be used or left empty
  • Color code on the connector matches installation die - provides matched system for fast and easy installation
  • Die index embossed on connector after completion of crimp
  • For use with Y750 tool, U654 die, Y46 tool, U654 die with puadp-1 adapter and P654 die
  • Provides maximum design and installation flexibility
  • Recommended flame retardant type CFFR insulating covers meet oxygen index 28 and UL94 V-0 requirements
  • Simplifies installation, reducing installed cost
  • Tap grooves function independently from each other
  • Third hand constrains conductors while installer completes crimp, included with each connector
  • Use of one tap is required
Standard
RoHS Compatible
Sub_Brand
Burndy
Tap_Size
2 AWG to 250 kcmil
Type
Type YSH Double
