Burndy Burndy YA29LNT38
Burndy YA29LNT38
Kirby Risk #: 541301
UPC: 78181001854, 781810018545, 00781810018545
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

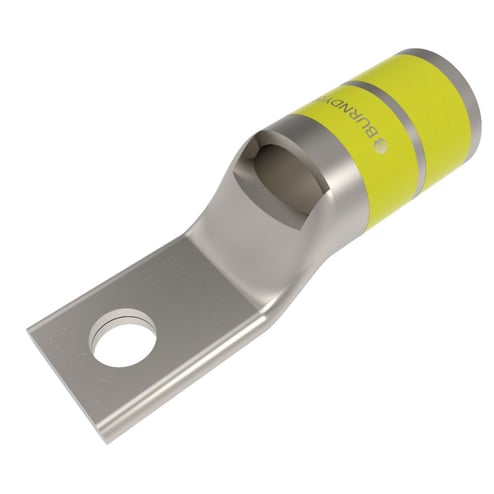

Copper Compression lug, Narrow Tongue, 1 Hole w/ Inspection Window, 250 kcmil, 3/8" Stud, Short Barrel, Tin Plated.
AD Description
BURNDY® HYLUG YA29LNT38 YA-L-NT 1-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 3/8 in Stud, Copper
Vendor Description
BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Country of Origin |
US
|
| Length1 |
2.9600
|
| Material |
Copper
|
| Special Features |
|
| Standard |
UL 486A-486B
|
| Sub_Brand |
HYLUG
|
| Type |
YA-L-NT, Code Conductor Standard Barrel Narrow Tongue
|
| Voltage Rating |
35,000
|
