Burndy Burndy YS34A1


Description

Industry Description

Aluminum Compression Splice, 500 kcmil, 5" Splice Length, Long Barrel, Tin Plated.

Modified Industry Description

AL COMPR BUTT SPLICE 500 KCMIL LONG

AD Description

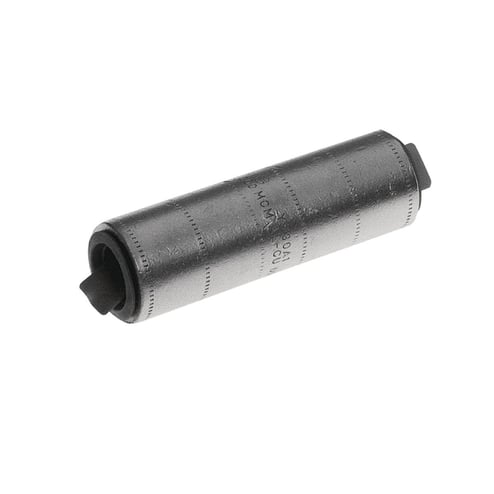

BURNDY® HYLINK™ YS34A1 Type YS-A Compression Standard Butt Splice, 500 kcmil Conductor, 5 in L, Long/Standard Barrel, Aluminum

Specifications

Application
For Use On All Combinations Of Aluminum To Aluminum, Aluminum To Copper, And Copper To Copper Conductor Combinations
Brand Name
Burndy
Conductor Range
500 kcmil
Conductor Size
500
Country of Origin
US
Finish
Electro-Plated Tin
Material
Aluminum
Package_Quantity
1
Size
5 IN Length X 2.38 IN Dimension B
Special Features

  • Belled end
  • Chamfered barrel style
  • Color coded end caps provides easy wire size and die code identification plus prevents foreign materials from entering and contaminating the connector prior to usage
  • Connector is clearly marked with wire size, die index and the proper number and location of crimps provides easy identification and tooling recommendation
  • Dieless tools (number of crimps)- hydraulic HYPRESS- Y644HS tool (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V tool (4), color code- Pink, die index- 300 element A, conductor type- stranded aluminum or Copper, wire strip length- 2-5/8 IN, tools, die set catalog number and (number of crimps)- Y35, Y39, Y75 tool, U34ART Die, (4), Y46 tool, U34ART die with puadp-1 adapter (4)
  • Electro-tin plated provides durable long lasting corrosion resistance
  • Internally beveled barrel provides easy cable entry
  • Manufactured from high-conductivity wrought aluminum with heavy duty wall thickness
  • Provides high-conductivity/low resistance and ductility for an excellent combination of electrical and crimp forming properties
  • Solid center stop and prefilled with PENETROX® oxide inhibiting compound provides stop for proper conductor insertion and an aid in forcing the PENETROX® between the individual wire strands
Standard
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
Sub_Brand
Burndy
Temperature_Rating
90
Type
Type YS-A Compression Standard
Voltage Rating
600 to 35000
