Burndy Burndy YA31
Burndy YA31
Kirby Risk #: 539404
UPC: 78181050495, 781810504956, 00781810504956
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

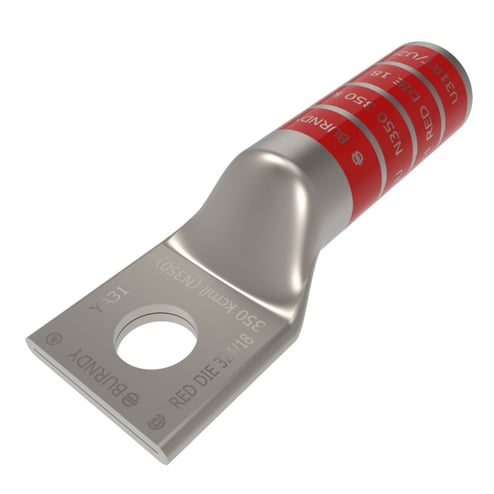

Copper Compression Lug, 1 Hole w/o Inspection Window, 350 kcmil, 1/2" Stud, Long Barrel, Tin Plated.
Modified Industry Description
350 MCM COPPER COMPRESSION LUG , 1 HOLE W/O INSPECTION WINDOW , 1/2 IN STUD , LONG BARREL
AD Description
BURNDY® HYLUG YA31 1-Hole Non-Insulated Compression Lug, 350 kcmil Stranded Copper Conductor, Die Code: 18/324, 1/2 in Stud, Copper
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
350 KCMIL, 185 SQ-MM For Class 2 Conductor
|
| Color |
Red
|
| Conductor Material |
Copper
|
| Conductor Size |
350
|
| Country of Origin |
US
|
| Insulation |
Uninsulated
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 18, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 2-1/16 IN, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W31VT, W31RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U31RT, U29ART Die, (4), Y46 Tool, U31RT, U29ART Die With PUADP-1 Adapter, (4), Color Code: Red, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Conductor Type: Commercial Stranded Copper
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/2
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole Non-Insulated
|
| Voltage Rating |
600 VAC to 35 kV
|
