Burndy Burndy YA29
Burndy YA29
Kirby Risk #: 539399
UPC: 78181050405, 781810504055, 00781810504055
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Copper Compression Lug, 1 Hole w/o Inspection Window, 250 kcmil, 1/2" Stud, Long Barrel, Tin Plated.
Modified Industry Description
250 MCM COPPER COMPRESSION LUG , 1 HOLE W/O INSPECTION WINDOW , 1/2 IN STUD , LONG BARREL
AD Description

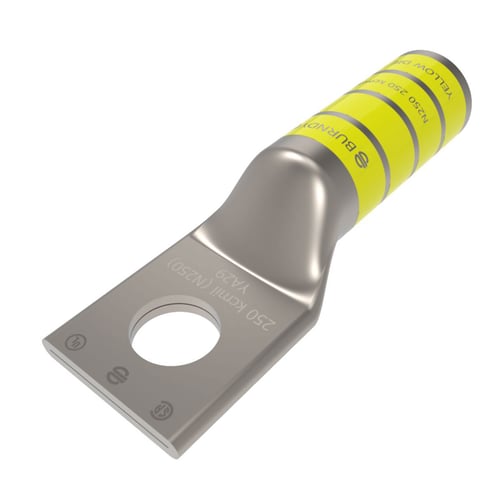

BURNDY® HYLUG™ YA29 1-Hole Compression Lug Connector, 250 kcmil Stranded Copper Conductor, Die Code: 16, 1/2 in Stud, Copper
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
250 kcmil
|
| Color |
Yellow
|
| Conductor Material |
Copper
|
| Conductor Size |
250
|
| Country of Origin |
US
|
| Insulation |
Uninsulated
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/2
|
| Sub_Brand |
Burndy
|
| Type |
YA, Code Conductor Long Barrel
|
| Voltage Rating |
600 - 35000 V
|
