Burndy Burndy YA28
Burndy YA28
Kirby Risk #: 539395
UPC: 78181050340, 781810503409, 00781810503409
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

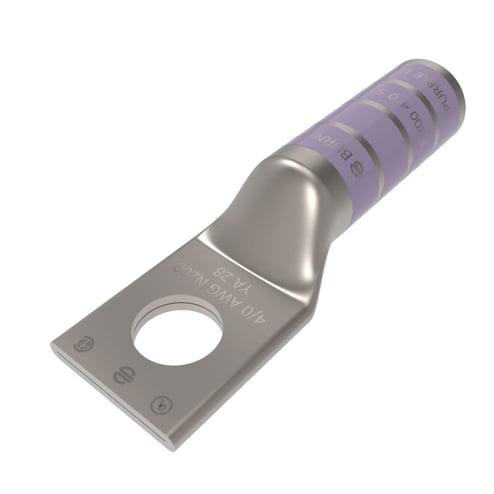

Copper Compression Lug, 1 Hole w/o Inspection Window, 4/0 AWG, 1/2" Stud, Long Barrel, Tin Plated.
Modified Industry Description
4/0 AWG COPPER COMPRESSION LUG , 1 HOLE W/O INSPECTION WINDOW , 1/2 IN STUD , LONG BARREL
AD Description
BURNDY® HYLUG YA28 1-Hole Non-Insulated Compression Lug, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/2 in Stud, Copper
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
4/0 AWG
|
| Color |
Purple
|
| Conductor Material |
Copper
|
| Conductor Size |
4/0
|
| Country of Origin |
US
|
| Insulation |
Uninsulated
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 1-11/16 IN, Die Index: 15, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Color Code: Purple, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4), Conductor Type: Commercial Stranded Copper
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/2
|
| Sub_Brand |
Burndy
|
| Type |
YA, Code Conductor Long Barrel
|
| Voltage Rating |
600 - 35000 V
|
