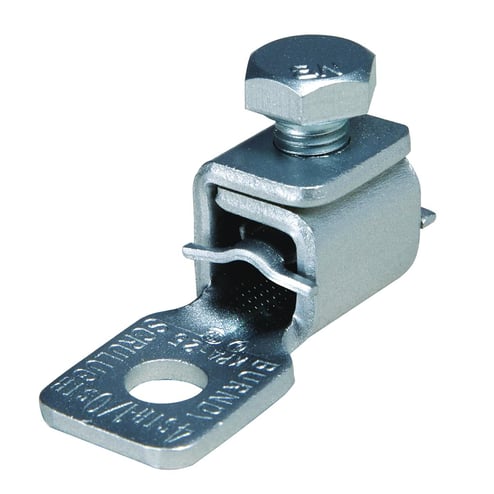

Burndy Burndy KPA28

Name: Burndy KPA28
Brand: Burndy
SKU: 539351
Price: 51.40 USD
Availability: InStock

Burndy KPA28

Kirby Risk #: 539351

UPC: 78181035590, 781810355909, 00781810355909

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

Copper Terminal, 1 Hole, 1/0-4/0 AWG (Str), 3/8" Stud, 1 Screw, Tin Plated.

Modified Industry Description

CU LUG 1 HOLE 1/0 - 4/0 AWG 3/8 STUD

AD Description

BURNDY® SCRULUG KPA28 Cable Terminal Lug, 6 to 4/0 AWG Copper Conductor, 9/16 in Stud, 1 Bolt Hole, Copper Alloy

Application	For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications
Bolt_Size	3/8
Brand Name	Burndy
Conductor_Range_Main_Primary	6 - 4/0 AWG
Connection	SCREW
Conductor Size	6 to 4/0
Country of Origin	US
Finish	Electro-Plated Zinc
Material	Copper Alloy
Number_Of_Mounting_Holes	1
Package_Quantity	1
Special Features	Especially good in light industrial applications High copper alloy tin plated terminal for joining a wide range of cable to equipment pads or terminal blocks The pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable The tongue and body are a one-piece design
Standard	UL Listed, CSA Certified
Stud_Size	9/16
Sub_Brand	Burndy
Type	KPA, Straight
