Burndy Burndy YGHC29C29

Name: Burndy YGHC29C29
Brand: Burndy
SKU: 539306
Price: 39.80 USD
Availability: InStock

Burndy YGHC29C29

Kirby Risk #: 539306

UPC: 78181022105, 781810221051, 00781810221051

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

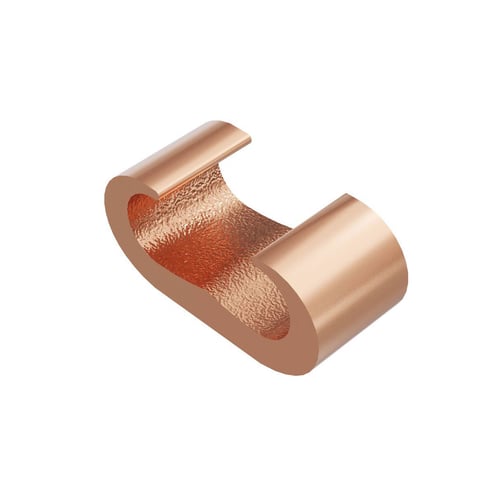

Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2" or 5/8" Rod (Run) & 3/0 AWG(Str) - 250 kcmil (Tap).

Modified Industry Description

3/0 AWG - 250 MCM COPPER COMPRESSION C CONNECTOR , 1/2 OR 5/8 IN STUD

AD Description

BURNDY® HYGROUND Hytap™ YGHC29C29 Type YGHC-C Compression C-Tap Connector, C, 3/0 AWG to 250 kcmil Main/Run, 3/0 AWG to 300 kcmil Tap, Copper

Application	Grounding
Brand Name	Burndy
Conductor Type	Commercial Stranded/Metric Copper
Conductor Size	Run: 4/0, 3/0 AWG, 250 KCMIL, 95, 120 MM
Country of Origin	US
Finish	Unplated
Material	Copper
Package_Quantity	1
Size	26 IN Height X 0.88 IN Length
Special Features	4/0, 3/0 AWG, 250 kcmil, 95 mm, 120 mm run size 4/0, 3/0 AWG, 250, 300 kcmil, 95 mm, 120 mm tap size 95 to 120 sq-mm conductor size run Accommodates all cable combinations from 6 AWG solid through 500 kcmil C-shaped opening permits placing 2 continuous parallel cables into conductor groove Continuous parallel cables into conductor groove CSA certified for wire to ground rod For HYPRESS, Y35, Y39, Y750, PAT750 tool, U-C die, Y45 tool, U-C die with PT6515 adapter, y46 tool and U-C die with puadp-1 adapter Irreversible compression ground tap figure C connectors Pre-filled with PENETROX® compound and strip sealed
Standard	UL467, 96 Listed, CSA Certified, RoHS Compatible, IEEE-837
Sub_Brand	Burndy
Tap_Size	3/0 AWG to 300 kcmil
Type	Type YGHC-C
