Burndy Burndy YGHC29C26

Name: Burndy YGHC29C26
Brand: Burndy
SKU: 539305
Price: 31.48 USD
Availability: InStock

Burndy YGHC29C26

Kirby Risk #: 539305

UPC: 78181022104, 781810221044, 00781810221044

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

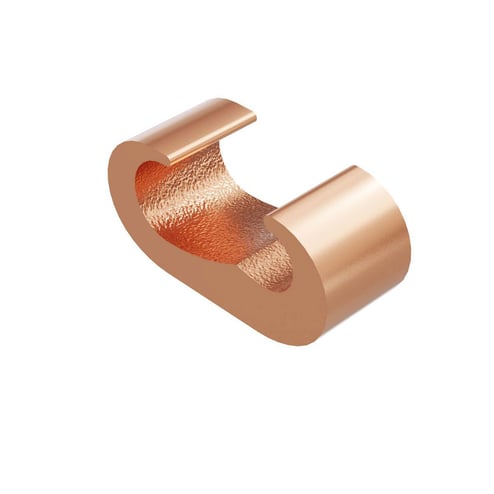

Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2" or 5/8" Rod (Run) & 6 AWG(Sol) - 2/0 AWG(Str) (Tap).

Modified Industry Description

CU COMPR C TAP CONN 3/0 - 250 STR 1/2 OR 5/8 ROD 6 SOL - 2/0 STR TAP

AD Description

BURNDY® Hytap™ Hyground® YGHC29C26 Type YGHC-C Compression Connector, C, 3/0 AWG to 250 kcmil Main/Run, 6 AWG Solid to 2/0 AWG Stranded Tap, Copper

Application	Grounding
Brand Name	Burndy
Conductor Size	Run: 4/0, 3/0 AWG, 250 KCMIL, 95, 120 MM
Country of Origin	US
Finish	Unplated
Material	Copper
Package_Quantity	1
Size	1.97 IN Height X 0.75 IN Length
Special Features	Acceptable for direct burial in earth or concrete, prefilled with PENETROX compound and strip sealed Accommodates all cable combinations from #6 AWG solid through 500 kcmil C- shaped opening permits placing two continuous parallel cables into conductor groove Irreversible compression ground tap figure C connectors
Standard	UL467, 96 Listed, CSA Certified, RoHS Compatible, IEEE-837
Sub_Brand	Burndy
Tap_Size	6-2/0
Type	Parallel Tap Connector
