Burndy Burndy YGHC2C2

Name: Burndy YGHC2C2
Brand: Burndy
SKU: 539303
Price: 7.96 USD
Availability: InStock

Burndy YGHC2C2

Kirby Risk #: 539303

UPC: 78181022101, 781810221013, 00781810221013

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

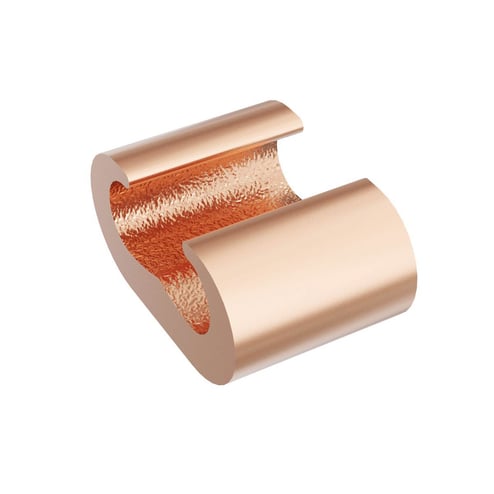

Copper Compression C Connector, 6 AWG(Sol) - 2 AWG(Str), 1/4" Rod(Run) & 6 AWG(Sol) - 2 AWG(Str) (Tap).

Modified Industry Description

CU COMPR C TAP CONN 6 SOL - 2 STR 1/4 ROD 6 SOL - 2 STR TAP

AD Description

BURNDY® HYGROUND Hytap™ YGHC2C2 Type YGHC-C Compression C-Tap Connector, C, 6 to 2 AWG Main/Run, 6 to 2 AWG Tap, Copper

Application	For Direct Burial Cables
Brand Name	Burndy
Conductor Type	Commercial Stranded/Metric Copper
Conductor Size	Run: 2, 4, 6 AWG, 10, 35 MM
Country of Origin	US
Finish	Unplated
Material	Copper
Package_Quantity	1
Size	1.16 IN Height X 0.75 IN Length
Special Features	10 to 35 sq-mm conductor size run 2, 4, 6 AWG, 10 mm, 35 mm run size 2, 4, 6 AWG, 10 mm, 35 mm tap size Accommodates all cable combinations from 6 AWG solid through 500 kcmil C-shaped opening permits placing 2 continuous parallel cables into conductor groove Continuous parallel cables into conductor groove CSA certified for wire to ground rod For HYPRESS, Y35, Y39, Y750, PAT750 tool, U-C die, Y45 tool, U-C die with PT6515 adapter, y46 tool and U-C die with puadp-1 adapter Irreversible compression ground tap figure C connectors Pre-filled with PENETROX® compound and strip sealed
Standard	UL467, 96 Listed, CSA Certified, RoHS Compatible, IEEE-837
Sub_Brand	Burndy
Tap_Size	6 to 2
Type	Type YGHC-C
