Copper Compression Cross Grid Connector, 2 AWG (Str)-250 kcmil or 1/2"-5/8" Rod or #3-4 Rebar, 2 AWG (Str)-250 kcmil.

Modified Industry Description

2 AWG - 250 MCM COPPER COMPRESSION GRID ROD CONNECTOR , 1/2 - 5/8 IN ROD

AD Description

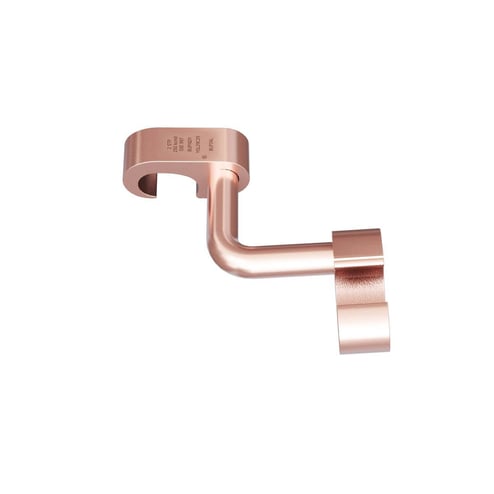

BURNDY® HYGRID YGL29C29 Type YGL-C Compression Cross Grid Connector, 2 AWG to 250 kcmil Conductor, 1/2 to 5/8 in Rod, Copper, Unplated

Specifications

Application
For Direct Burial In Earth And Concrete
Brand Name
Burndy
Conductor Size
2 AWG to 250 kcmil
Country of Origin
US
Finish
Unplated
Material
Copper
Package_Quantity
1
Size
0.75 IN Dimension B X 1.66 IN Dimension C X 0.5 IN Dimension D X 2.5 IN Dimension L X 0.75 IN Dimension B-B X 1.66 IN Dimension C-C X 0.5 IN Dimension R
Special Features

  • #2 stranded - 250 kcmil for element A, #2 stranded - 250 kcmil for element B cable to cable, 1/2 in - 5/8 in rod element, #2 stranded - 250 kcmil element B, 3-gang/8 in - 1/2 in and #3 - 4 element A to rebar
  • 997 die index number
  • Acceptable for direct burial in earth and concrete
  • An irreversible compression ground grid cross connector which allows adjustment of the compression elements prior to installation
  • Die set catalog number and (number of crimps) element Y750/Y35/Y39 hypress tool, (1) U997 die, PAT750-18V tool, (1) U997P polarized die, Y45 hypress tool, (1) U997 die, Y46 hypress tool, (1) U997 die, element B Y750/Y35/Y39 hypress tool, (1) U997 die, PAT750-18V tool, (1) U997P polarized die, Y45 hypress tool, (1) U997 die, Y46 hypress tool, (1) U997 die installation tool
  • Dimensions in brackets represent lightning protection conductors
  • Only six connectors and four dies are required to install all combinations from 6 AWG solid through 500 kcmil
  • Prefilled with PENETROX and strip sealed, dimensions in brackets represent lightning protection conductors
  • Size: 3-gang/4 in dimension B x 1.66 in dimension C x 1/2 in dimension D x 3-gang/4 in dimension B-B x 1.66 in dimension C-C x 1/2 in dimension R
Standard
UL Listed, CSA Certified, ROHS Compatible
Sub_Brand
Burndy
Type
Type YGL-C
