Burndy Burndy KVS28


Description

Industry Description

Compact, two-piece, high strength, high copper alloy BURNDY OKLIP recommended for heavy duty connections. Neoprene rings hold DURIUM bolts in place during installation.Installed with ordinary wrench.Recommended tightening torque:250 in-lb.

Modified Industry Description

6/7 TO 4/0 AWG COPPER 2BLT CONNECTOR SPLIT BOLT

AD Description

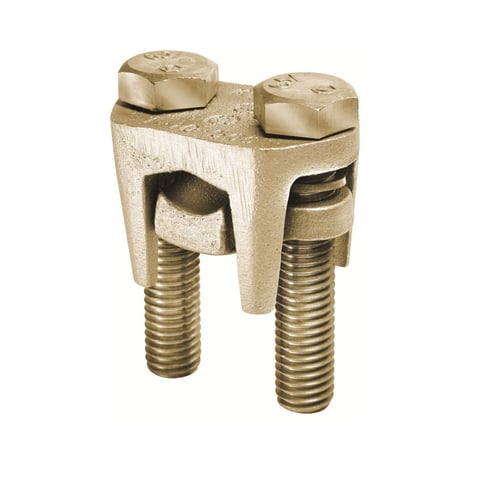

BURNDY® OKLIP™ KVS28 2-Piece Compact High Strength Mechanical Grounding Connector, 6/7 to 4/0, 8/7 to 4/0 AWG Conductor, Copper Alloy

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Copper, Copperweld
Brand Name
Burndy
Conductor_Range_Main_Primary
6/7 - 4/0 AWG
Conductor_Range_Tap_Secondary
8/7 - 4/0 AWG
Conductor Type
Copper/Stranded
Conductor Size
6/7 to 4/0, 8/7 to 4/0 AWG
Country of Origin
MX
Finish
Plain Copper Plated
Material
Copper Alloy
Package_Quantity
1
Special Features

  • 250 in-lb installation torque
  • 6/7 to 4/0 AWG (main/primary), 8/7 to 4/0 AWG (tap/secondary) conductor size
  • For copper and copper weld wires
  • High strength, high copper alloy BURNDY® oklip recommended for heavy duty connections
  • Installed with ordinary wrench
  • Neoprene rings hold Durium bolts in place during installation
  • Run and tap: copper weld, commercial stranded copper, solid copper weld conductor type
Standard
UL Listed, CSA Certified, ROHS Compatible
Sub_Brand
Burndy
Type
2-Piece Compact High Strength
