Burndy Burndy KSU23


Description

Industry Description

Tin-plated, high strength copper alloy SERVIT with spacer. Spacer seperates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors, 1.48 IN L.

Modified Industry Description

CU SPLIT BOLT 2 - 8AWG AL/CU

AD Description

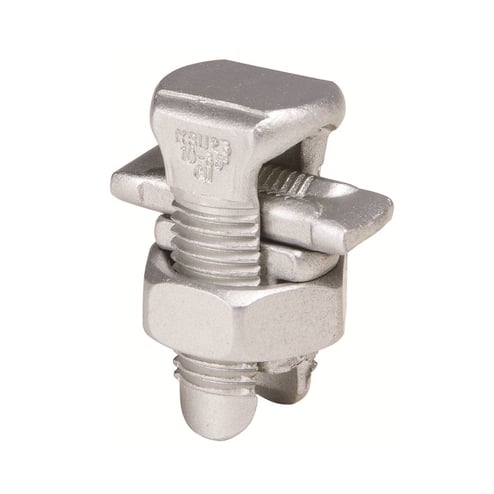

BURNDY® SERVIT® KSU23 Universal Split Bolt Connector, (1) 8 to 2 AWG, 8 to 1 Conductor, 1.48 in L, Copper Alloy

Specifications

Application
For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel
Brand Name
Burndy
Conductor_Range_Main_Primary
2 (6-1) - 8 AWG Solid
Conductor_Range_Tap_Secondary
8 AWG Solid - 1 (6-1)
Conductor Size
8 to 2 AWG, 8 to 1
Country of Origin
US
Finish
Tin Plated
Material
Copper Alloy
Number_of_Conductors_Ports_Tap_Secondary
1
Package_Quantity
1
Special Features

  • 0.81 in across flats
  • 8 to 2 AWG main/primary, 8 to 1 tap/secondary
  • 8 to 2 AWG of copper tap range and copper stranded run (range), 8 AWG copper solid tap (range)
  • Conductor type - run ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, tap - ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, steel (nominal diameter)
  • High conductivity copper alloy
  • Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors
  • Tin plated, high strength copper alloy SERVIT with spacer
  • Use of PENETROX™ joint compound recommended with aluminum and ACSR
Standard
UL 486A Listed, CSA Certified For Copper Only, RoHS Compatible
Sub_Brand
Burndy
Type
Universal
