Burndy Burndy YAEV18
Burndy YAEV18
Kirby Risk #: 539238
UPC: 78181002481, 781810024812, 00781810024812
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Copper Tubing Hylug, 8-10, .91 in L, .31 in W, Tin Plated, 600 Volts Max.
AD Description

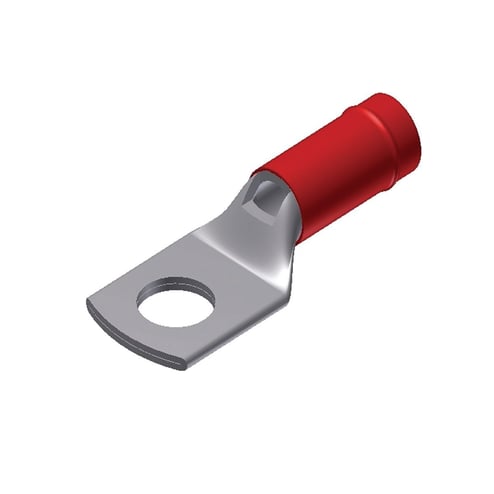

BURNDY® INSULUG YAEV18 Heavy Duty Compression Lug, 22 to 18 AWG Stranded Copper Conductor, #8 to #10 Stud, Copper
Vendor Description
The INSULUG type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 deg C and meets SAE-AS7928 requirements.
Specifications
| Application |
For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
|
|---|---|
| Color |
Red
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
22 to 18
|
| Country of Origin |
US
|
| Insulation |
True
|
| Length1 |
0.9100
|
| Material |
Copper
|
| Series |
YAEV
|
| Special Features |
|
| Standard |
UL486;Military Specified (Mil-Spec)
|
| Sub_Brand |
INSULUG
|
| Temperature_Rating |
105
|
| Type |
Heavy Duty
|
| Voltage Rating |
300
|
