Industry Description
3M™ 5411R Series Molded Rubber QS II Splice Kit is a 15kV 1 piece inline splice perfect to repair damaged cables. It is suitable to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables with copper or aluminum conductors. Its elongated design ensures the easy removal of damaged cables up to 6 inches.
Modified Industry Description
CABLE REPAIR SPLICE KIT
AD Description
3M™ 054007-09354 QS-II 5411R In-Line Repair Insulated Splice Kit, 15 kV, 2 to 1/0 AWG Conductor, 15.7 in L Splice, EPDM Rubber
Vendor Description

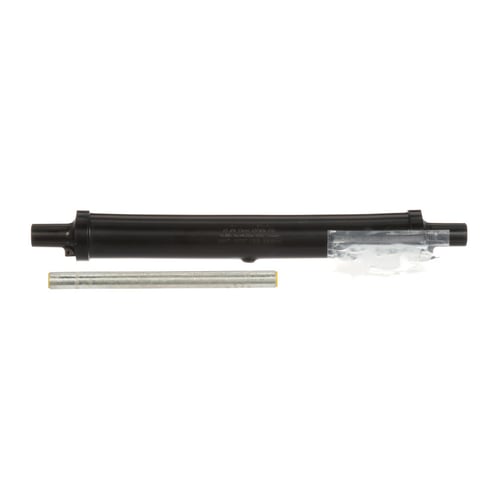

3M™ 5411R series molded rubber QS-II splice kit is a 15 kV 1-piece in-line splice perfect to repair damaged cables. It is suitable to use on 15 kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables with copper or aluminum conductors. Its elongated design ensures the easy removal of damaged cables up to 6 in. 3M™ 5411R series QS-II splice kit includes an EPDM molded rubber splice body, a packet of silicone grease and an instruction sheet. It replaces up to 6 in of damaged cable, thereby eliminating the need to splice in a new section of cable with 2-separate splices. It is suitable to use on cables that can withstand a maximum temperature of 90 deg C. The splice is molded from specially formulated, peroxide cured EPDM rubbers to provide physical protection. connectors bridge the gap where the damaged cable is removed. The kit meets the requirements of IEEE 404 standards.
