Bussmann Bussmann 16394-3


Description

Industry Description

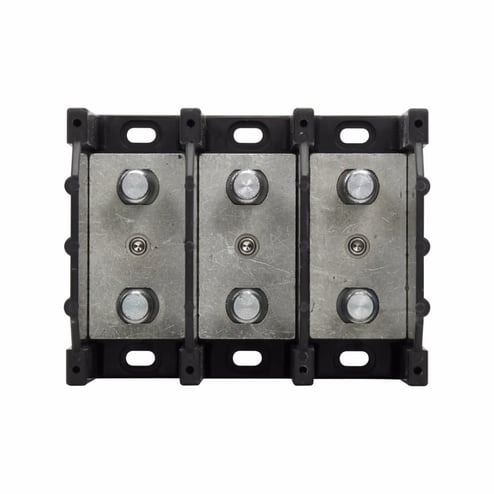

400A 600V Stud to Stud 3 Pole Power Terminal Block

Modified Industry Description

STUD TO STUD POWER BLOCK 3 POLE

AD Description

Edison Magnum® 16394-3 Barrier/Connector to Stud Power Terminal Block, 600 VAC/VDC, 400 A, 3 Poles, Thermoplastic

Vendor Description

Edison series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).

Specifications

Amperage Rating
400
Application
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name
Bussmann
Color
Black
Connection
1/2 In-13 TPI X 1-1/16 In Stud (Line/Load)
Country of Origin
MX
Finish
Tin Plated
Material
Thermoplastic
Number_Of_Poles
3
Operating_Voltage
3
Size
5.21 In Length X 4.00 In Width X 3.32 In Height
Special Features

  • (1) stud primary, (1) stud secondary
  • 1/2-13 x 1-1/16 in stud line/load connection
  • 1/2-13 x 1-1/16 stud line/load
  • Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
  • Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
  • Molded thermoplastic base, tin plated aluminum connector
  • Rated for dual wire port application to increase the possible number of lineside and loadside connections
  • SMD/SMT style mounting
Standard
UL, CSA
Sub_Brand
Cooper Bussmann
Type
Barrier/Connector to Stud
Voltage Rating
600
