Appleton Appleton EYD5


Description

Industry Description

UNILETS EYD Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting, Size: 1-1/2 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered FNPT, Turning Radius: 2.06 IN, Length: 5-1/2 IN, Width: 2.44 IN, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III, For Use With Threaded Rigid Metal Conduit and IMC

Modified Industry Description

SEAL

AD Description

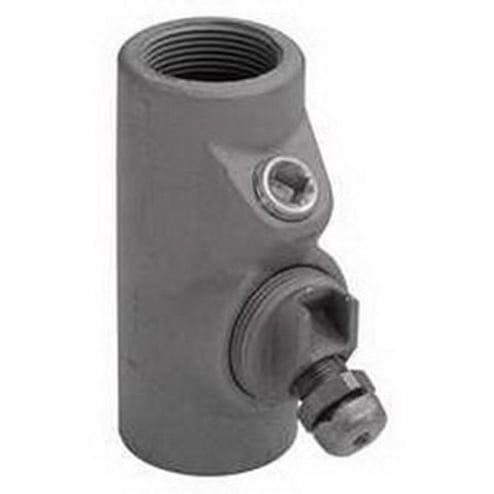

Appleton® UNILETS® EYD5 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 1-1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Grayloy-Iron, Triple Coated

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Brand Name
Appleton
Color
Gray
Connection
Tapered FNPT
Country of Origin
MX
Finish
Triple Coated
Material
Grayloy-Iron
Special Features

  • 25% fill vertical conduit drain sealing fittings
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Chromate/epoxy powder coated/zinc electroplated finish
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Restrict any explosion to the sealed off enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • Tapered FNPT connection
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III
Sub_Brand
Appleton
Type
Dust-Ignitionproof Explosionproof Raintight
