Hubbell Hubbell HBL2735SW

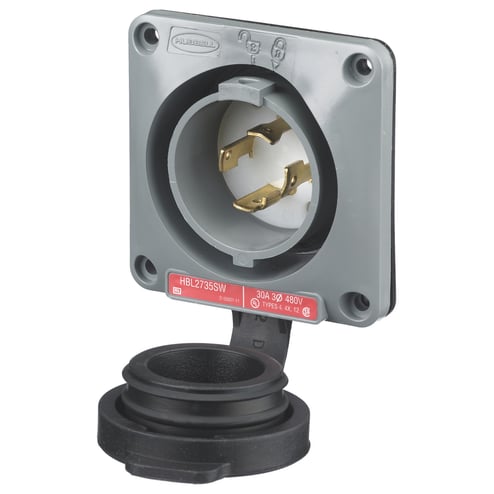

Hubbell HBL2735SW
Kirby Risk #: 499748
UPC: 78358523196, 783585231969, 00783585231969
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 30A 3-Phase Delta 480V AC, 3-Pole 4-WireGrounding, L16-30P, Screw Terminal, Gray
Modified Industry Description
30A 480V - GRAY FLANGED INLET, WATERTIGHT SAFETY SHROUD, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2735SW 3-Phase Grounding Standard Single Shrouded Watertight Locking Flanged Inlet, 480 VAC, 30 A, 3 Poles, 4 Wires, Gray/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Gray/White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12AWG to #8AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4X/12/IP66
|
| Environmental_Conditions |
Watertight
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Flush
|
| NEMA_Configuration |
L16-30P
|
| NEMA_Rating |
NEMA L15-30P/WD1/WD5
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three Phase Motors
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
3-Phase Grounding Standard Single Shrouded Watertight
|
| Voltage Rating |
480
|
| Wattage |
14400
|
