Hubbell Hubbell HBL330C4W

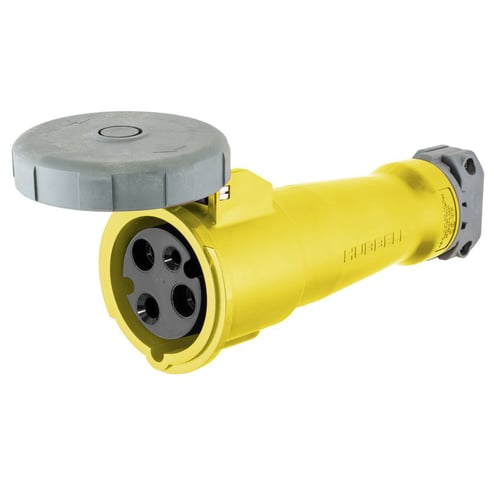

Hubbell HBL330C4W
Kirby Risk #: 499324
UPC: 78358540349, 783585403496, 00783585403496
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 30A 125V AC, 2-Pole3-Wire Grounding, Terminal Screws, Yellow, Watertight
Modified Industry Description
30A 125V 2 POLE 3 WIRE FEMALE SLEEVE CONNECTOR BODY
AD Description
Wiring Device-Kellems HBL330C4W Female Heavy Duty Insulated Standard Watertight Pin and Sleeve Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
125
|
