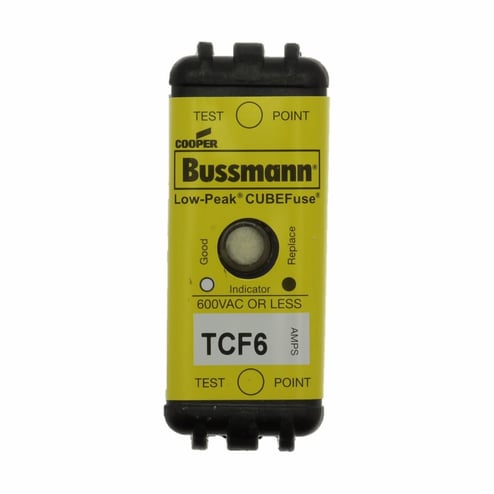

6A 600V Special Purpose CUBEFUSE Fuse, Dual Element Time Delay

Modified Industry Description

6A 600V - CLASS CF INDICATING CUBEFUSE FUSE, DUAL ELEMENT TIME DELAY

AD Description

Edison Low-Peak™ CUBEFuse™ TCF6 Current Limiting Inrush Current Withstand Time Delay Fuse, 6 A, 600 VAC/300 VDC, 300/100 kA Interrupt, Class: CF, Square Body

Vendor Description

The Bussmann series Low-Peak™ CUBEFuse™ is a UL® class CF current limiting, dual element, time delay branch circuit fuse with class J electrical performance. Available in indicating and non-indicating versions, this finger safe fuse has a very compact, space saving size and is easily applied using the CUBEFuse™ holder, UL 98 compact circuit protector switch or compact circuit protector base (CCPB used in the QuikSpec™ coordination Panelboard).

Specifications

Amperage Rating
6
Application
Electrical Panelboards, Industrial Control, Machinery Disconnects, Required Finger Safe Systems
Brand Name
Bussmann
Characteristics
Time Delay
Connection
Blade End
Country of Origin
MUL
Element
Dual
Interrupt_Rating
300/100
Material
Glass Filled Polyethersulfone
Model
TCF
Mounting
35 mm DIN Rail, Chassis
Package_Quantity
1
Response_Time
10
Special Features

  • 10 s at 500% response time
  • 300 kA RMS symmetrical UL, 200 kA RMS symmetrical CSA, 100 kA DC UL/CSA rated interrupt rating
  • 35 mm DIN rail mount
  • Class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
  • Easy selective coordination with any other Bussmann series Low-Peak® class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
  • Easy selective coordination with any other Cooper Bussmann Low-Peak™
  • Faster response to damaging faults to help reduce destructive thermal and magnetic forces
  • High 300 kA interrupt rating safely interrupts virtually any fault
  • High interrupting rating to safely interrupt faults up to 300 kA
  • Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
  • Low let through currents under fault conditions
  • Low let-through currents under fault conditions
  • Meets class CF and class J time delay electrical performance requirements
  • No venting of arc or molten metal and gases during opening
  • Provides type 2 "No Damage" in protection for IEC motors starters when properly sized
  • Provides type 2 "no damage" protection for IEC motors starters when properly sized
  • Robust cycling and inrush current withstand
  • Smallest footprint of any class fuse including class J, CC, T and RK
  • The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
  • The indicating version features easyID™ open fuse technology for faster troubleshooting and reduced downtime
  • The world's first finger safe power fuse system
  • True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
  • True dual element fuse construction with a minimum of 10 sec time delay at 500% of rating
Standard
UL, CSA, CE
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Energetic Chemical Open Fuse Indicator
Type
Current Limiting Inrush Current Withstand
Voltage Rating
600 VAC/300 VDC
