Hubbell Hubbell HBL303NM
Hubbell HBL303NM
Kirby Risk #: 498734
UPC: 78358504053, 783585040530, 00783585040530
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Hull Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal,Office White
Modified Industry Description
30A 125V NONMETL MARINE HULL INLET
AD Description

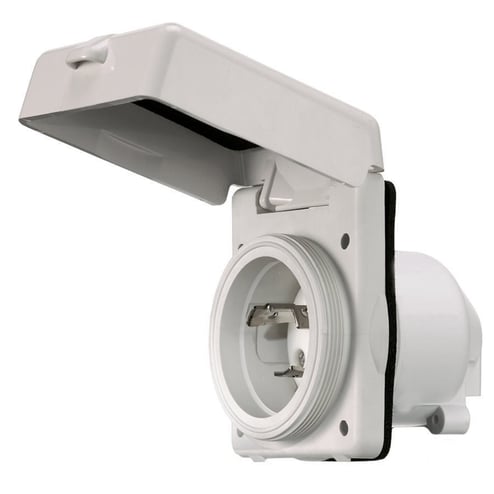

Wiring Device-Kellems Twist-Lock® HBL303NM 1-Phase Grounding Hull Inlet With Mounting Screw, Gasket, 125 VAC, 30 A, 2 Poles, 3 Wires, Off-White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Marine Wiring Devices
|
| Color |
White
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Insulation |
Insulated Body
|
| Length1 |
4.8000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Hull Mount
|
| NEMA_Rating |
L5-30P
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact
|
| Type |
Hull Mount Single Inlet
|
| Voltage Rating |
125
|
| Wattage |
3,750
|
