Appleton Appleton EFDL75-J1U2
Appleton EFDL75-J1U2
Kirby Risk #: 497586
UPC: 78138113333, 781381133333, 0068785513333, 00781381133333
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
EFDL Series 3 Device Pilot Light, Voltage Rating: 600 VAC, Amperage Rating: 10 AMP, Enclosure: NEMA 3, 7CD, 9EFG, Conduit Connection: 3/4 IN Dead-End, Consist Of: (1) Pilot Light, (2) Pushbutton, Material: Malleable Iron Body With Cop
Modified Industry Description
PUSH BUTTON STATION
AD Description

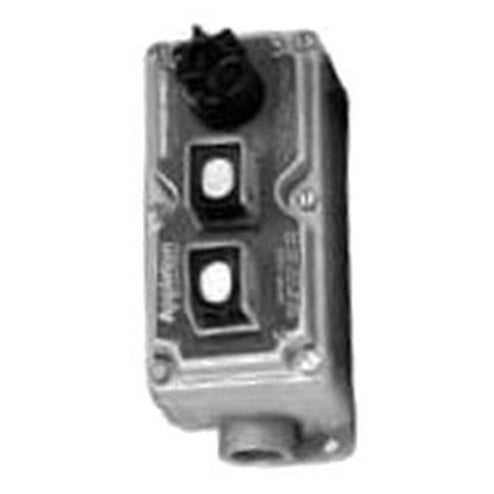

Appleton® EFDL75-J1U2 3-Device Combination Pushbutton Pilot Light Station, 600 VAC, 10 A, NEMA 3/7CD/9EFG
Vendor Description
Appleton® explosionproof, dust-ignitionproof EFD Series factory sealed control stations confine the arcing of devices within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location. EFD Series control stations are designed for use in classified areas where flammable vapors, gases or highly combustible dusts are present.
Specifications
| Amperage Rating |
10
|
|---|---|
| Application |
For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
|
| Country of Origin |
MX
|
| Dimensions |
8.13 in H x 3.5 in W x 5.5 in D
|
| Enclosure |
NEMA 3, 7CD, 9EFG
|
| Length1 |
11.2000
|
| Material |
Malleable Iron
|
| NEMA_Rating |
NEMA 3/7CD/9EFG
|
| Series |
EFD
|
| Special Features |
Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered
|
| Standard |
UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, D, Class I, Division 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
|
| Sub_Brand |
Appleton
|
| Type |
3-Device Combination Pushbutton
|
| Voltage Rating |
600
|
